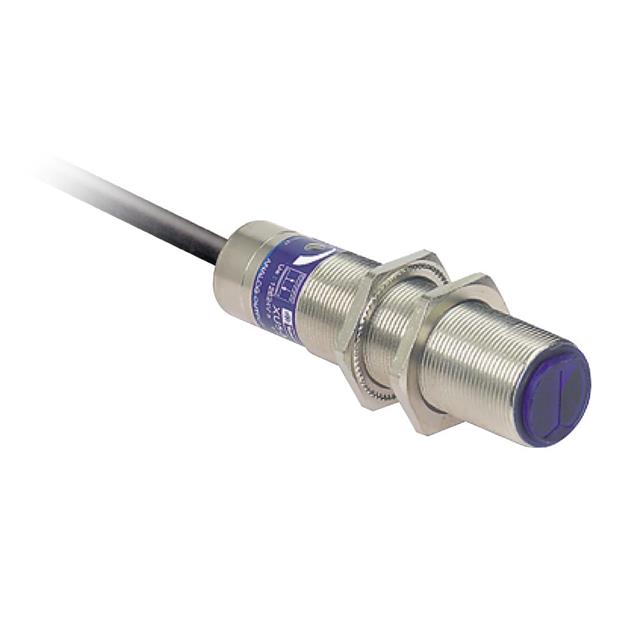

XU5M18MB230
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, OSISENSE XU, M18, DIFFUSE, 400 MM, SOLID STATE , 24 VDC TO 240 VDC
XU5M18MB230
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, OSISENSE XU, M18, DIFFUSE, 400 MM, SOLID STATE , 24 VDC TO 240 VDC
Description
General part information
XU5M18MB230
Diffuse Optical Sensor 15.748" (400mm) SCR, NC
Technical Specifications
Parameters and characteristics for this part
| Specification | XU5M18MB230 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NC, SCR |
| Response Time | 20 ms |
| Sensing Distance | 15.748 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
