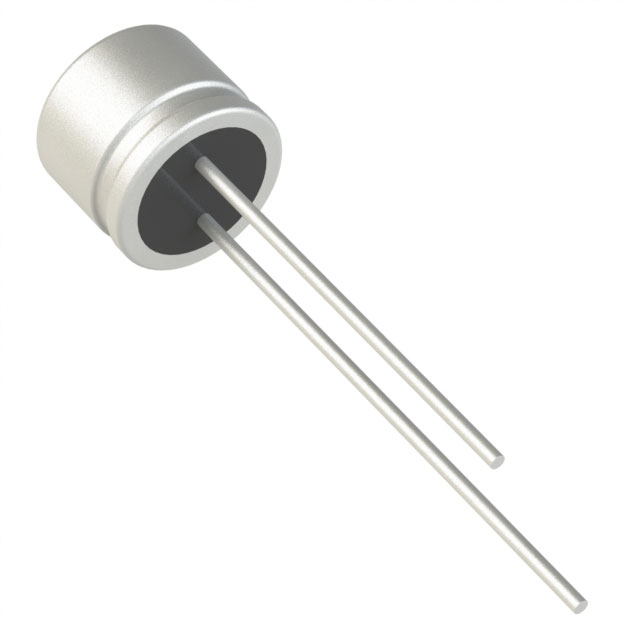

RHA1009560M050B
ActiveKYOCERA AVX
CAP ALUM HYBRID 56UF 20% 50V TH
RHA1009560M050B
ActiveKYOCERA AVX
CAP ALUM HYBRID 56UF 20% 50V TH
Description
General part information
RHA1009560M050B
56 µF 50 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | RHA1009560M050B |
|---|---|
| Applications | General Purpose |
| Capacitance | 56 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.197 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 230 mA, 2.3 A |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 50 V |
