MAL213226471E3
ActiveVishay Dale

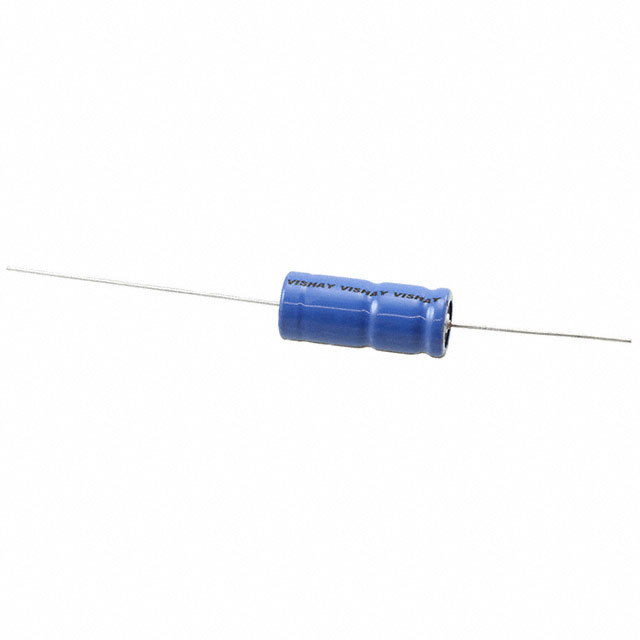

CAP ALUM 470UF 25V AXIAL TH
MAL213226471E3
ActiveVishay Dale
CAP ALUM 470UF 25V AXIAL TH
Description
General part information
MAL213226471E3
470 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 370mOhm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213226471E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 370 mOhm |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 560 mA |
| Size / Dimension Diameter | 0.492 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 25 VAC |
