19010351
ActiveLED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, GREEN, 24 VDC, 8 MM, 20 MA, 8 MCD, IP67
19010351
ActiveLED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, GREEN, 24 VDC, 8 MM, 20 MA, 8 MCD, IP67
Description
General part information
19010351

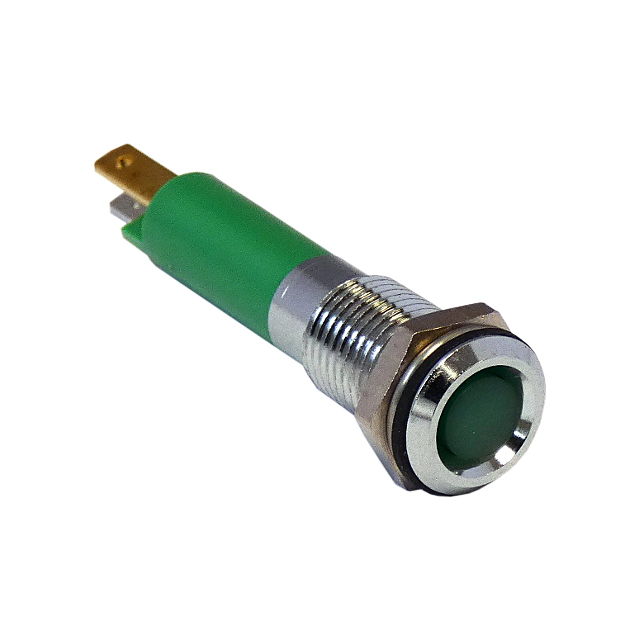

The 19010351 is a 24VDC 2-connector panel-mount standard green LED Indicator with satin chrome metal super-flat bezel and M8 screw thread. It has brass anode and tinned cathode terminal pin assignment, Makrolon 2805 plastic construction, diffused lens surface and tab terminals connector.
Technical Specifications
Parameters and characteristics for this part
| Specification | 19010351 |
|---|---|
| Current | 22 mA |
| Ingress Protection | IP67 |
| Lens Color | Green |
| Lens Style | Round, Flat Top |
| Millicandela Rating | 8 mcd |
| Panel Cutout Dimension | 0.315 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Length | 0.354 in |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 24 V |
