RP42010R0025GTBK-50
ObsoleteKYOCERA AVX
RES SMD 25 OHM 2% 10W 2010
RP42010R0025GTBK-50
ObsoleteKYOCERA AVX
RES SMD 25 OHM 2% 10W 2010
Description
General part information
RP42010R0025GTBK-50

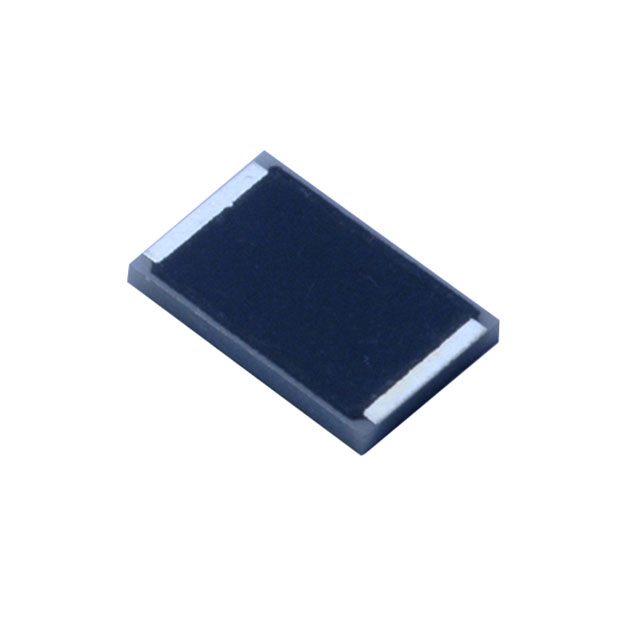

25 Ohms ±2% 10W Chip Resistor 2010 (5025 Metric) Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RP42010R0025GTBK-50 |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) | 0.04 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Package Name | 2010 |
| Power (Watts) | 10 W |
| Resistance | 25 Ohm |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | 150 ppm/¯C |
| Tolerance | 2 % |
