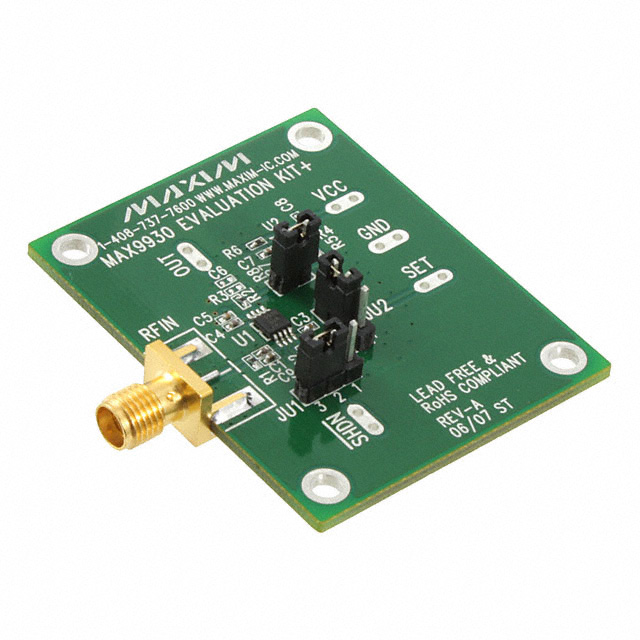

MAX9930EVKIT+

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX9930

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX9930

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX9930EVKIT+	MAX9930 Series

Accuracy	-	1 dB
Current - Supply	-	12 mA
For Use With/Related Products	MAX9930	MAX9930
Frequency [Max]	1.6 GHz	1.6 GHz
Frequency [Min]	2 MHz	2 MHz
Input Range	-	0 dBm
Input Range	-	-45 dBm
Mounting Type	-	Surface Mount
Package / Case	-	8-MSOP, 8-TSSOP
Package / Case	-	0.118 in
Package / Case	-	3 mm
RF Type	-	GPRS, Cellular, TDMA, GSM, CDMA
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-uMAX/uSOP
Type	Log Detector/Controller	Log Detector/Controller
Voltage - Supply	-	5.25 V
Voltage - Supply	-	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

IC RF DETECT 2MHZ-1.6GHZ 8UMAX

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Frequency [Max]	Frequency [Min]	Input Range [Max]	Input Range [Min]	Accuracy	Current - Supply	RF Type	For Use With/Related Products	Type	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX9930EUA+T	Surface Mount	5.25 V	2.7 V	8-MSOP, 8-TSSOP	0.118 in	3 mm	8-uMAX/uSOP	1.6 GHz	2 MHz	0 dBm	-45 dBm	1 dB	12 mA	CDMA, Cellular, GPRS, GSM, TDMA
Analog Devices Inc./Maxim Integrated MAX9930EVKIT+								1.6 GHz	2 MHz						MAX9930	Log Detector/Controller	Board(s)
Analog Devices Inc./Maxim Integrated MAX9930EUA+	Surface Mount	5.25 V	2.7 V	8-MSOP, 8-TSSOP	0.118 in	3 mm	8-uMAX/uSOP	1.6 GHz	2 MHz	0 dBm	-45 dBm	1 dB	12 mA	CDMA, Cellular, GPRS, GSM, TDMA

General part information

- MAX9930 Log Detector/Controller 2MHz ~ 1.6GHz Evaluation Board
