Description
General part information

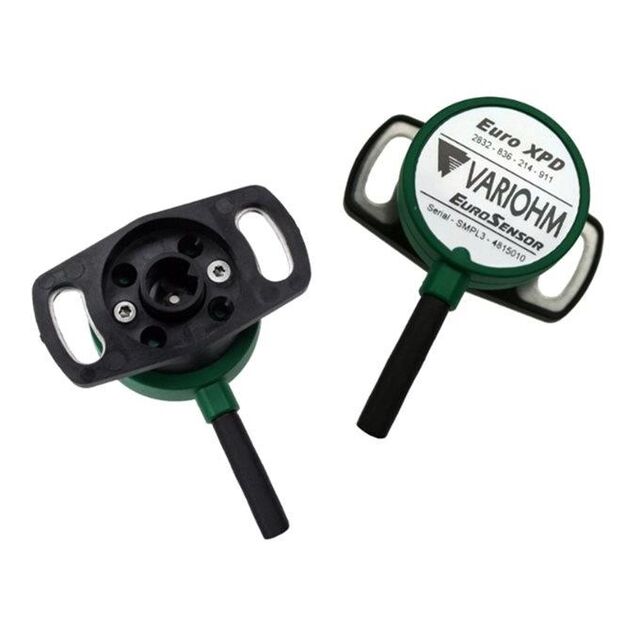

EURO-XPD-2838-806-214-911-00
Sensor
Technical Specifications
Parameters and characteristics for this part
| Specification | EURO-XPD-2838-806-214-911-00 |
|---|---|
| Actuator Type | Not Included, External Magnet |
| For Measuring | Angle |
| Linearity Tolerance | 0.5 % |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Output Signal | Programmable |
| Package / Case | Module |
| Resistance | 200 MOhm |
| Rotation Angle - Electrical, Mechanical (Maximum) | 60 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Technology | Hall Effect |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
