2CMA193314R1000
ActiveMcGill Microwave Systems
AC RCPT PIN & SLEEVE
2CMA193314R1000
ActiveMcGill Microwave Systems
AC RCPT PIN & SLEEVE
Description
General part information
2CMA193314R1000

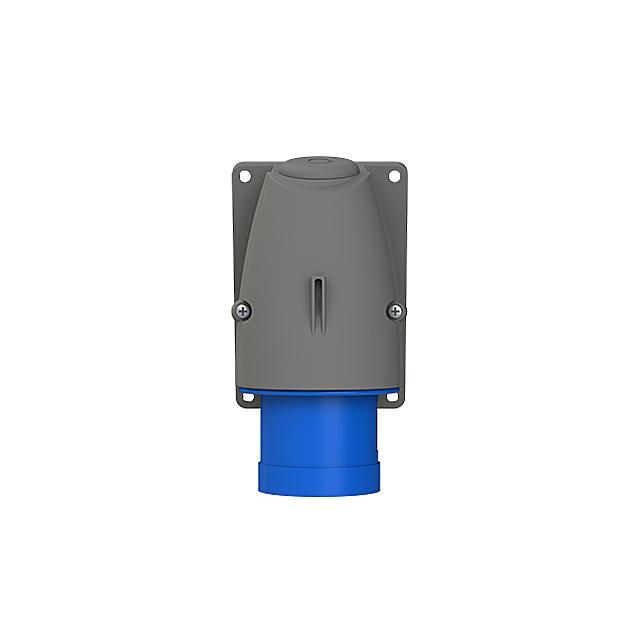

Power Connector Receptacle, Male Pins Pin and Sleeve (2P3W) Wall Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CMA193314R1000 |
|---|---|
| Approval Agency | IEC |
| Connector Style | Pin and Sleeve (2P3W) |
| Connector Type | Receptacle, Male Pins |
| Current Rating | 32 A |
| Ingress Protection | IP44 |
| Mounting Type | Wall Mount |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating (Option 1) | 200 VAC |
| Voltage Rating (Option 2) | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
