RNF12FTD931R
ActiveStackpole Electronics Inc
RES 931 OHM 1% 1/2W AXIAL
RNF12FTD931R
ActiveStackpole Electronics Inc
RES 931 OHM 1% 1/2W AXIAL
Description
General part information
RNF12FTD931R

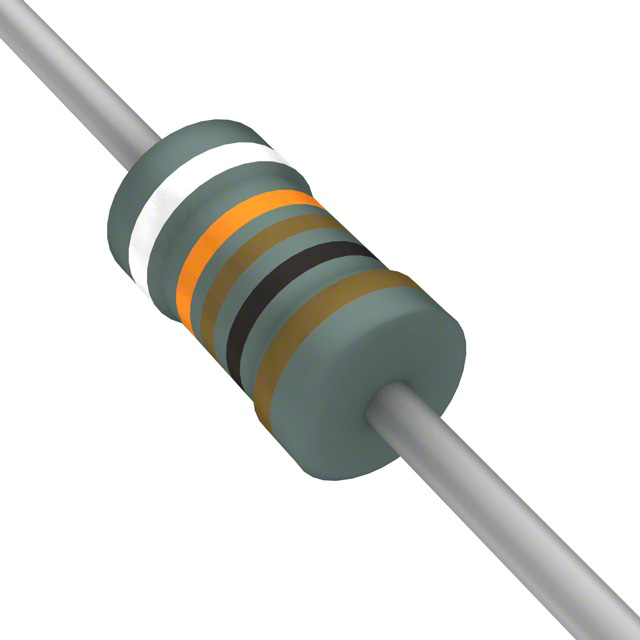

931 Ohms ±1% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNF12FTD931R |
|---|---|
| Composition | Metal Film |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 931 Ohm |
| Size / Dimension Diameter | 0.108 in |
| Size / Dimension Length | 0.344 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
