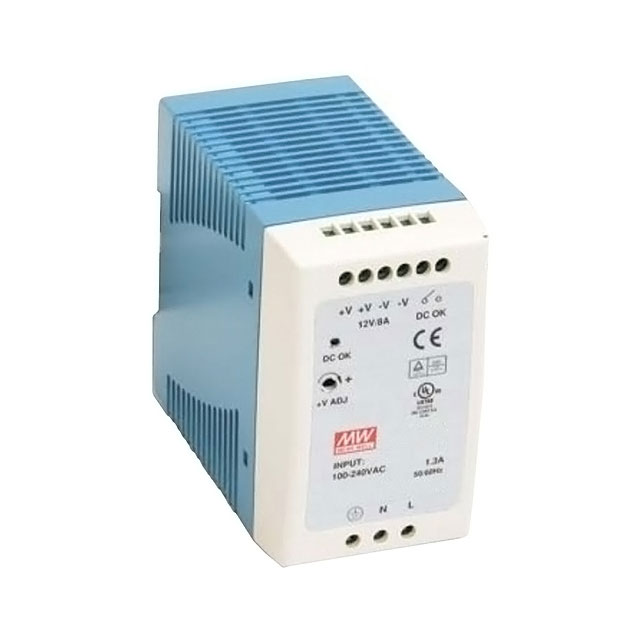

BB-MDR-100-12
ObsoleteAdvantech Corporation
AC/DC DIN RAIL SUPPLY 12V 100W
BB-MDR-100-12
ObsoleteAdvantech Corporation
AC/DC DIN RAIL SUPPLY 12V 100W
Description
General part information
BB-MDR-100-12
AC/DC DIN RAIL SUPPLY 12V 100W
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-MDR-100-12 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, TUVgs, cULus |
| Current - Output (Max) | 7.5 A |
| Efficiency | 85 % |
| Features | Universal Input, Adjustable Output |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 3.54 in |
| Size / Dimension Length | 3.94 in |
| Size / Dimension Width | 2.17 in |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
