ASTMUPLDFL-125.000MHZ-LY-E-T
ObsoleteAbracon LLC
MEMS OSC XO 125.0000MHZ LVDS SMD
ASTMUPLDFL-125.000MHZ-LY-E-T
ObsoleteAbracon LLC
MEMS OSC XO 125.0000MHZ LVDS SMD
Description
General part information
ASTMUPLDFL-125.000MHZ-LY-E-T

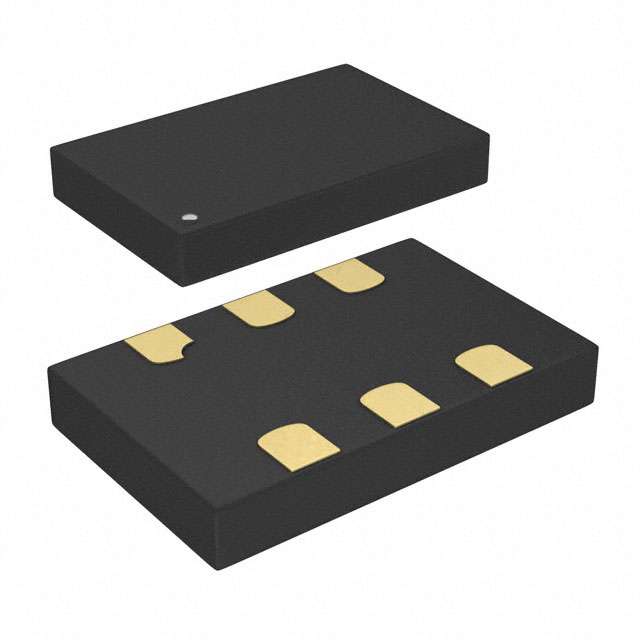

125 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTMUPLDFL-125.000MHZ-LY-E-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 35 mA |
| Current - Supply (Max) | 55 mA |
| Frequency | 125 MHz |
| Frequency Stability | 10 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 5 mm |
| Package Name | 6-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 2.25 V |
