Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TESEO-VIC3D | TESEO Series |
|---|---|---|
| - | - | |
| Antenna Connector | Not Included | Not Included |
| Applications | GPS | GPS, General Purpose |
| Data Interface | I2C, UART | I2C, GPIO, UART |
| Frequency | 1.575 GHz, 1.561 GHz | 1.561 - 1.575 GHz |
| Grade | - | Automotive |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-SMD Module | 24-SMD Module, 18-SMD Module |
| Qualification | - | AEC-Q100 |
| Sensitivity | -163 dBm | -163 dBm |
| Supplier Device Package | - | 18-LCC |
| Supplier Device Package | - | 9.7 |
| Supplier Device Package | - | 10.1 |
| Voltage - Supply [Max] | 3.63 V | 3.3 - 4.3 V |
| Voltage - Supply [Min] | 2.97 V | 1.8 - 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TESEO Series
GNSS DEAD RECKONING MODULE, 1.57542GHZ ROHS COMPLIANT: YES
| Part | Grade | Modulation or Protocol | Voltage - Supply [Min] | Voltage - Supply [Max] | Applications | Package / Case | Frequency | Sensitivity | Antenna Connector | Mounting Type | Qualification | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TESEO-VIC3DA | |||||||||||||||||
STMicroelectronics TESEO-VIC3DTR | Automotive | BeiDou, Galileo, GLONASS, GNSS, GPS | 2.97 V | 3.63 V | GPS | 24-SMD Module | 1.561 GHz, 1.575 GHz | -163 dBm | Not Included | Surface Mount | AEC-Q100 | GPIO, I2C, UART | 85 °C | -40 °C | |||
STMicroelectronics TESEO-LIV3R | |||||||||||||||||
STMicroelectronics TESEO-LIV4FTR | |||||||||||||||||
STMicroelectronics TESEO-VIC3DTR | |||||||||||||||||
STMicroelectronics TESEO-VIC3DA | Automotive | BeiDou, Galileo, GLONASS, GNSS, GPS | 2.97 V | 3.63 V | GPS | 24-SMD Module | 1.561 GHz, 1.575 GHz | -163 dBm | Not Included | Surface Mount | AEC-Q100 | I2C, UART | 85 °C | -40 °C | |||
STMicroelectronics TESEO-VIC3DA | |||||||||||||||||
STMicroelectronics TESEO-LIV4FTR | |||||||||||||||||
STMicroelectronics TESEO-LIV3R | |||||||||||||||||
STMicroelectronics TESEO-VIC3D | BeiDou, Galileo, GLONASS, GNSS, GPS | 2.97 V | 3.63 V | GPS | 24-SMD Module | 1.561 GHz, 1.575 GHz | -163 dBm | Not Included | Surface Mount | I2C, UART | 85 °C | -40 °C | |||||
STMicroelectronics TESEO-LIV4FTR | BeiDou, Galileo, GLONASS, GNSS, GPS | 1.8 V | 3.3 V | GPS | 18-SMD Module | Not Included | Surface Mount | GPIO, I2C, UART | 18-LCC | 9.7 | 10.1 | ||||||
STMicroelectronics TESEO-LIV3R | |||||||||||||||||
STMicroelectronics TESEO-VIC3D | |||||||||||||||||
STMicroelectronics TESEO-LIV3R | BeiDou, GLONASS, GNSS, GPS | 2.1 V | 4.3 V | General Purpose | 18-SMD Module | 1.561 GHz, 1.575 MHz | -163 dBm | Not Included | Surface Mount | I2C, UART | 85 °C | -40 °C | 18-LCC | 9.7 | 10.1 | ||
STMicroelectronics TESEO-VIC3DA | |||||||||||||||||
STMicroelectronics TESEO-LIV4F | BeiDou, Galileo, GLONASS, GNSS, GPS | 1.8 V | 3.3 V | GPS | 18-SMD Module | Not Included | Surface Mount | GPIO, I2C, UART | 18-LCC | 9.7 | 10.1 | ||||||
STMicroelectronics TESEO-VIC3D | |||||||||||||||||
STMicroelectronics TESEO-LIV4F |
Description
General part information
TESEO Series

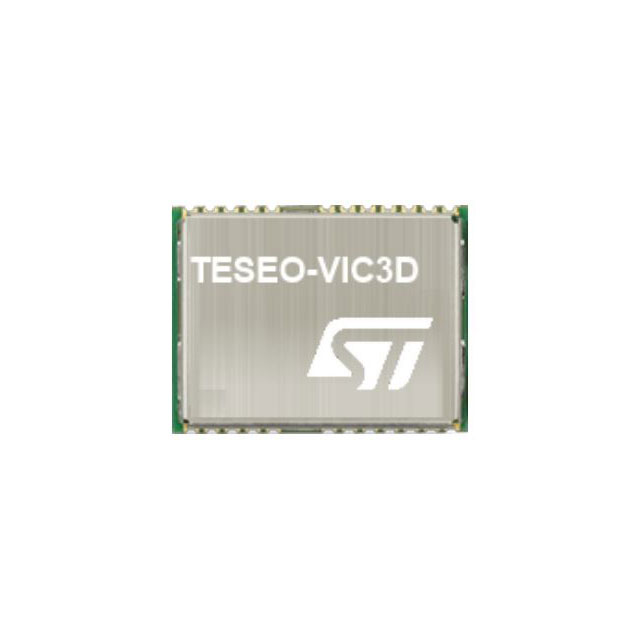

Teseo-VIC3DA and Teseo-VIC3D modules are an easy to use dead-reckoning Global Navigation Satellite System (GNSS) standalone module, embedding TeseoIII single die standalone positioning receiver IC working simultaneously on multiple constellations (GPS/Galileo/Glonass/BeiDou/QZSS).
The Teseo-VIC3Dx module brings the proven accuracy and robustness of TeseoIII chip to the reach of everyone: the embedded firmware and the complete evaluation environment save development time.
Within its 16.0 mm x 12.2 mm size, Teseo-VIC3Dx is offering superior accuracy thanks to the on board Temperature Compensated Crystal Oscillator (TCXO) and a reduced Time To First Fix (TTFF) relying on its dedicated Real Time Clock (RTC) oscillator. Thanks to the embedded flash Teseo-VIC3Dx offers many extra features such as 7 days Autonomous Assisted GNSS, Predictive Assisted GNSS and Real-Time Assisted GNSS.
