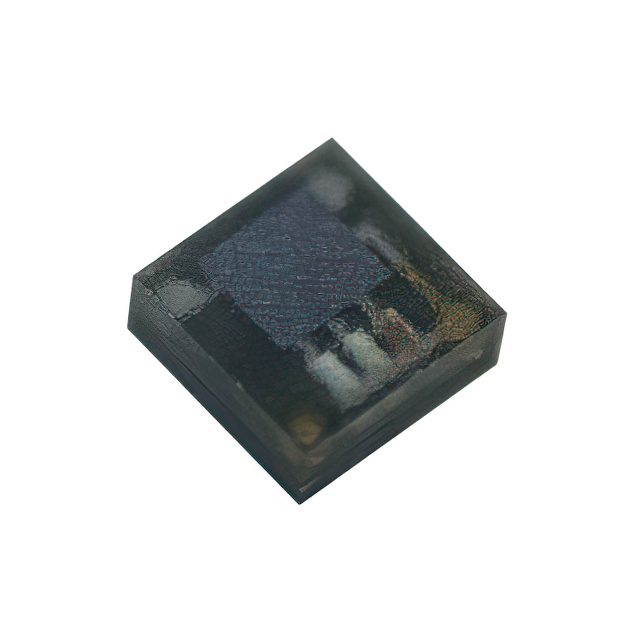

B3D83RGB-05C0001I4U1930
ActiveHarvatek Corporation
LED RGB CLEAR 0404 SMD
B3D83RGB-05C0001I4U1930
ActiveHarvatek Corporation
LED RGB CLEAR 0404 SMD
Description
General part information
B3D83RGB-05C0001I4U1930
Red, Green, Blue (RGB) 624nm Red, 523nm Green, 470nm Blue LED Indication - Discrete 5V Red, 5V Green, 5V Blue 0404 (1010 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B3D83RGB-05C0001I4U1930 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Height (Max) | 0.6 mm |
| Lens Color | Colorless |
| Lens Size | 1.08 mm |
| Lens Style | Flat Top, Square |
| Lens Transparency | Clear |
| Millicandela Rating (Blue) | 20 mcd |
| Millicandela Rating (Green) | 85 mcd |
| Millicandela Rating (Red) | 65 mcd |
| Millicandela Rating Colors | Blue, Red, Green |
| Mounting Type | Surface Mount |
| Package / Case | 0404 (1010 Metric) |
| Package Name | 0404 |
| Size / Dimension Length | 1.08 mm |
| Size / Dimension Width | 1.08 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Blue) | 5 V |
| Voltage - Forward (Vf) (Typ) (Green) | 5 V |
| Voltage - Forward (Vf) (Typ) (Red) | 5 V |
| Voltage - Forward (Vf) (Typ) Color | Blue, Red, Green |
| Wavelength - Dominant (Blue) | 470 nm |
| Wavelength - Dominant (Green) | 523 nm |
| Wavelength - Dominant (Red) | 624 nm |
| Wavelength - Dominant Color | Red, Blue, Green |
| Wavelength - Peak (Blue) | 465 nm |
| Wavelength - Peak (Green) | 518 nm |
| Wavelength - Peak (Red) | 630 nm |
| Wavelength - Peak Colors | Green, Red, Blue |
