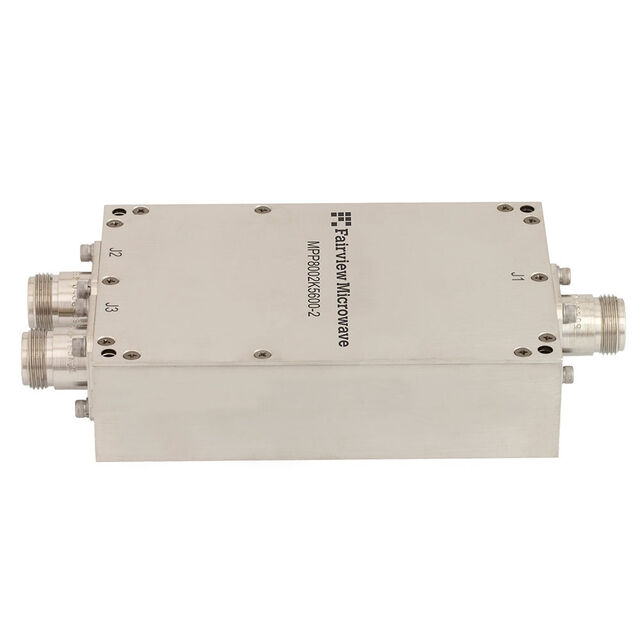

MPP8002K5600-2
ActiveFairview Microwave
COMBINER TYPE N 800MHZ-2.5GHZ 2
MPP8002K5600-2
ActiveFairview Microwave
COMBINER TYPE N 800MHZ-2.5GHZ 2
Description
General part information
MPP8002K5600-2
RF Power Divider 800 MHz ~ 2.5 GHz Isolation (Min) 7.5dB, 5° Imbalance (Typ), 1.3 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | MPP8002K5600-2 |
|---|---|
| Frequency Range 1 (Max) | 2.5 GHz |
| Frequency Range 1 (Min) | 800 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.6 dB |
| Isolation (Min) | 7.5 dB |
| Package / Case | Module |
| Size / Dimension Height | 1.15 in |
| Size / Dimension Length | 4.5 in |
| Size / Dimension Width | 3 in |
| VSWR (Max) | 1.3 |
