RNF-100-3/4-BK-SP-CS7327
ActiveTE Connectivity Aerospace, Defense and Marine

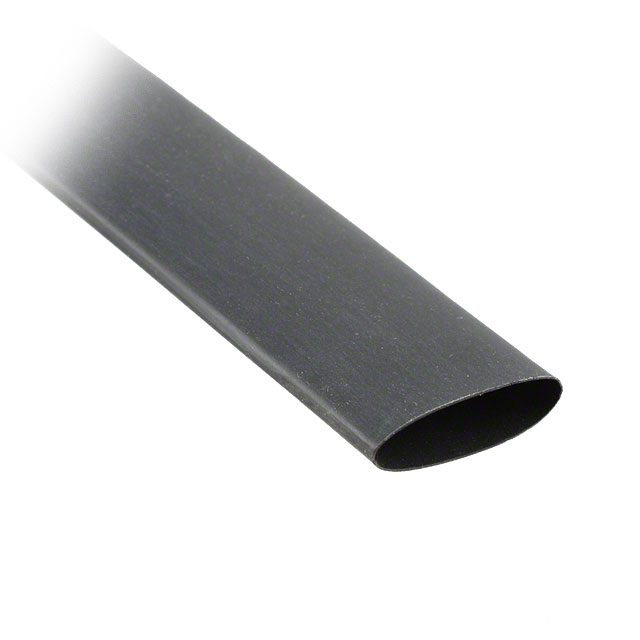

HEATSHRINK 3/4" BLACK
Deep-Dive with AI
Search across all available documentation for this part.
RNF-100-3/4-BK-SP-CS7327
ActiveTE Connectivity Aerospace, Defense and Marine
HEATSHRINK 3/4" BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RNF-100-3/4-BK-SP-CS7327 | RNF-100 Series |
|---|---|---|
| Color | Black | Clear, Black, Red, White, Brown, Gray, Yellow |
| Features | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | Strain Resistant, Abrasion and Cut Resistant, Solvent Resistant, Fluid Resistant, Flame Retardant |
| Inner Diameter - Recovered | - | 2.36 - 3.18 mm |
| Inner Diameter - Recovered | - | 0.093 in |
| Inner Diameter - Recovered | - | 0.58 mm |
| Inner Diameter - Recovered [diameter] | 0.375 in | 0.031 - 1.5 in |
| Inner Diameter - Recovered [diameter] | 9.53 mm | 0.023 - 38.1 mm |
| Inner Diameter - Supplied | - | 0.046 - 3 in |
| Inner Diameter - Supplied | - | 0.093 - 76.2 mm |
| Inner Diameter - Supplied | - | 2.36 mm |
| Length | - | 91.4 m |
| Length | - | 300 ft |
| Length | - | 1.22 m |
| Length | - | 4 ft |
| Material | Polyolefin (PO), Irradiated | Polyolefin (PO), Irradiated, Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Recovered Wall Thickness | 0.76 mm | 0.41 - 3.99 mm |
| Recovered Wall Thickness | 0.03 " | 0.03 " |
| Recovered Wall Thickness | - | 0.016 - 0.157 in |
| Recovered Wall Thickness | - | 0.025 " |
| Recovered Wall Thickness | - | 0.64 mm |
| Shelf Life | 144 Months | 144 Months |
| Shrink Temperature | 95 °C | 95 - 121 °C |
| Shrinkage Ratio | 2 to 1 | 2 to 1 |
| Storage/Refrigeration Temperature | - | 35 °C |
| Storage/Refrigeration Temperature | - | 0 °C |
| Type | Tubing, Flexible | Tubing, Flexible |
RNF-100 Series
HEATSHRINK 1" CLEAR
| Part | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Shelf Life | Color | Operating Temperature [Max] | Operating Temperature [Min] | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Recovered Wall Thickness | Recovered Wall Thickness | Material | Type | Shrinkage Ratio | Shrink Temperature | Features | Length | Length | Recovered Wall Thickness [custom] | Recovered Wall Thickness [custom] | Inner Diameter - Recovered | Inner Diameter - Recovered | Length [x] | Length [x] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Inner Diameter - Supplied [diameter] | Recovered Wall Thickness | Inner Diameter - Recovered [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine RNF-100-1-CL-SP-CS7312 | 1 in | 25.4 mm | 144 Months | Clear | 135 °C | -55 °C | 0.5 in | 12.7 mm | 0.89 mm | 0.035 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Fluid Resistant, Solvent Resistant, Strain Resistant | |||||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1/2-BK-SP-CS5004 | 0.5 in | 12.7 mm | 144 Months | Black | 135 °C | -55 °C | 0.25 in | 6.35 mm | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 91.4 m | 300 ft | 0.025 " | 0.64 mm | |||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-3/16-RD-SP-CS6162 | 0.187 in | 4.75 mm | 144 Months | Red | 135 °C | -55 °C | 0.51 mm | 0.02 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 2.36 mm | 0.093 in | |||||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-WH-SP-CS7807 | 0.125 " | 3.18 mm | 144 Months | White | 135 °C | -55 °C | 0.062 in | 1.57 mm | 0.51 mm | 0.02 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | |||||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-BK-STK-CS8794 | 0.125 " | 3.18 mm | 144 Months | Black | 135 °C | -55 °C | 0.062 in | 1.57 mm | 0.51 mm | 0.02 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 1.22 m | 4 ft | |||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1/2-BK-STK-CS7387 | 0.5 in | 12.7 mm | 144 Months | Black | 135 °C | -55 °C | 0.25 in | 6.35 mm | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 0.025 " | 0.64 mm | 1.22 m | 4 ft | |||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1-CL-STK-CS7620 | 1 in | 25.4 mm | 144 Months | Clear | 135 °C | -55 °C | 0.5 in | 12.7 mm | 0.89 mm | 0.035 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Fluid Resistant, Solvent Resistant, Strain Resistant | 1.22 m | 4 ft | |||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-3/8-RD-SP-CS5533 | 0.375 in | 9.53 mm | 144 Months | Red | 135 °C | -55 °C | 0.187 in | 4.75 mm | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 0.025 " | 0.64 mm | |||||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1/4-BN-STK | 0.25 in | 6.35 mm | 144 Months | Brown | 135 °C | -55 °C | 0.125 in | Polyolefin (PO), Irradiated | Tubing, Flexible | 2 to 1 | 95 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant | 0.025 " | 0.64 mm | 3.18 mm | 1.22 m | 4 ft | |||||||||||
TE Connectivity Aerospace, Defense and Marine RNF-100-1-1/2-BKSPCS5592 | 1.5 in | 38.1 mm | 144 Months | Black | 135 °C | -55 °C | 0.75 " | 19.05 mm | 1.02 mm | 0.04 in | Polyolefin (PO) | Tubing, Flexible | 2 to 1 | 121 °C | Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RNF-100 Series
Heat Shrink Tubing, Flexible 0.750" (19.05mm) 2 to 1 Black
