FMCA2968-60
ObsoleteFairview Microwave
CBL ASSY BMAJACK-BMAJACK 60
FMCA2968-60
ObsoleteFairview Microwave
CBL ASSY BMAJACK-BMAJACK 60
Description
General part information
FMCA2968-60

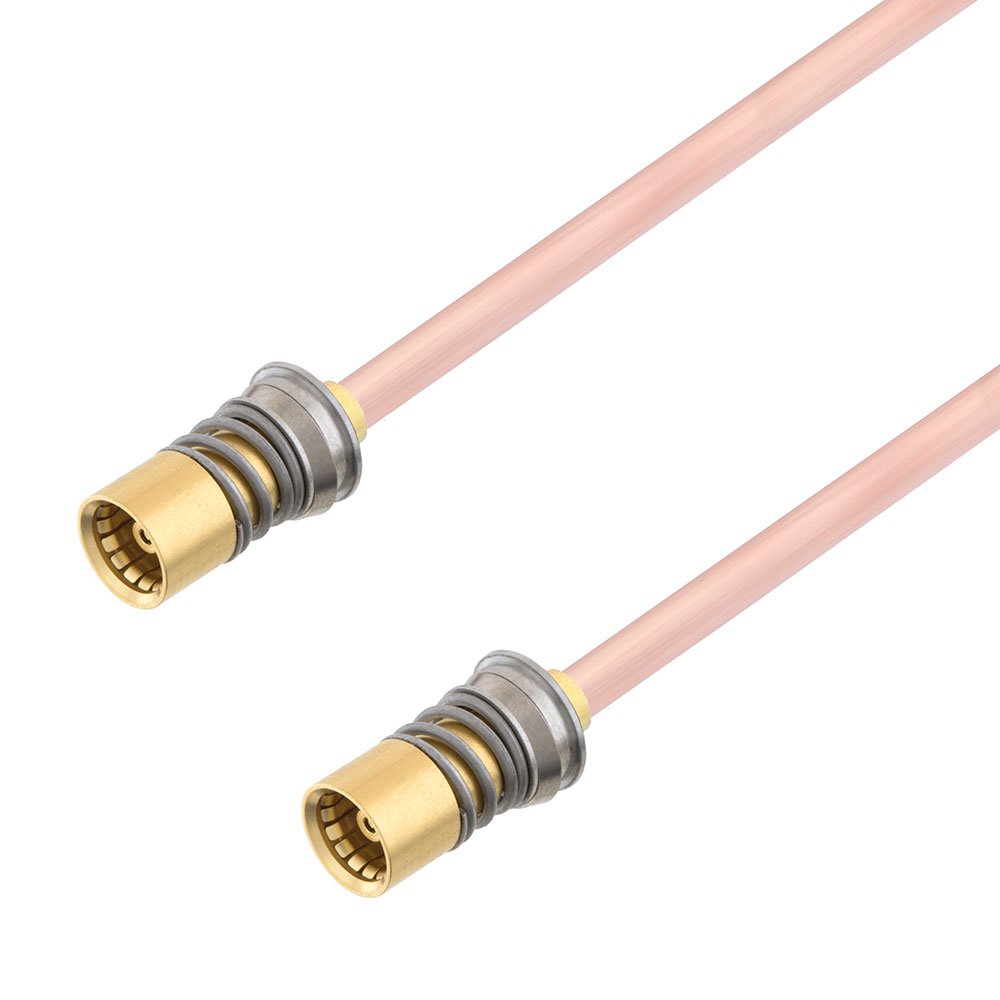

Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2968-60 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 22 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BMA |
