Description
General part information

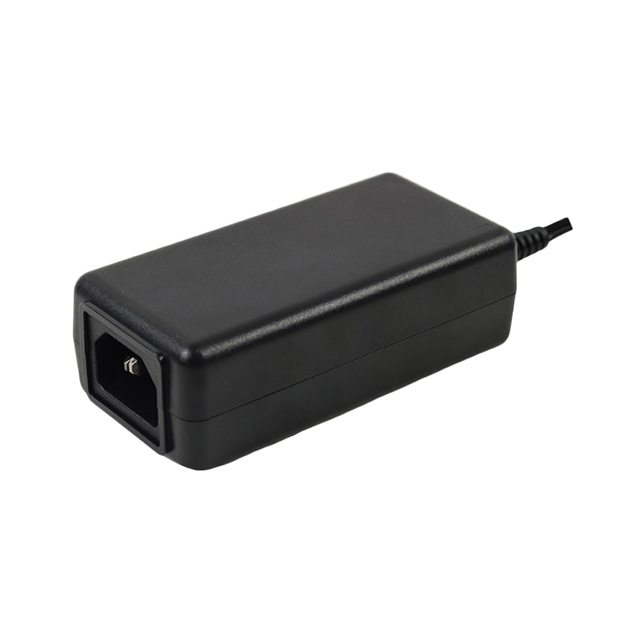

SDM36 Series
18V 36 W AC/DC External Desktop (Class I) Adapter Cord Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SDM36-18-UC-P5R |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB Scheme, UL, PSE, FCC, IEC, CSA, EN |
| Cord Length | 59 in |
| Current - Output (Max) | 2 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption (Max) | 100 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension Height | 1.3 in |
| Size / Dimension Length | 3.94 in |
| Size / Dimension Width | 1.97 in |
| Standard Number | 55011 Class B, 60601-1, C22.2 No. 60601-1, 61000-3-2, 61000-3-3 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 18 V |
| Weight | 6 oz |
