Description
General part information
HG3527EG

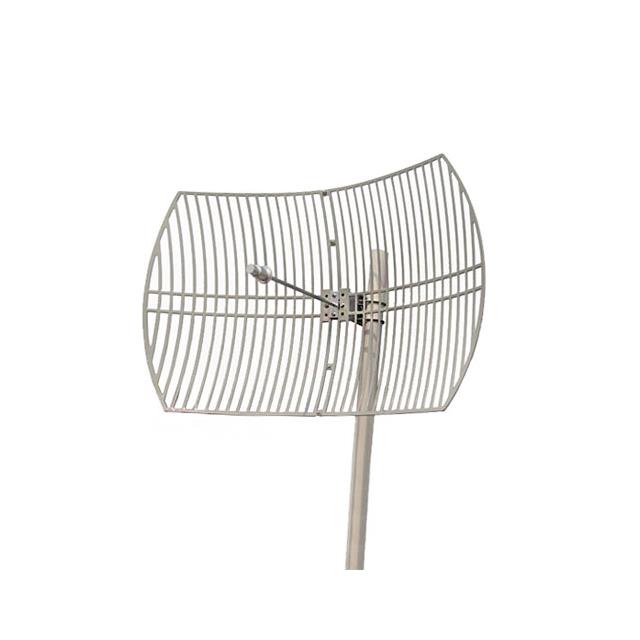

RF ANTENNA General Purpose Parabolic Grid N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG3527EG |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | General Purpose |
| Frequency (Center/Band) | 3.5 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 3.6 GHz |
| Frequency Range (Min) | 3.4 GHz |
| Gain | 27 dBi |
| Height (Max) | 17.244 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
