Description
General part information

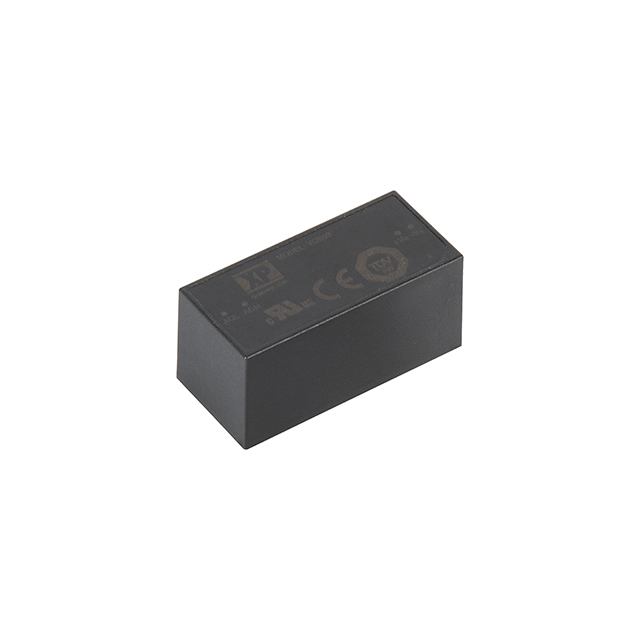

VCE03US12
Enclosed AC DC Converters 1 Output 12V 250mA 85 ~ 305 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VCE03US12 |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | CB, TUV, UL |
| Current - Output (Max) | 250 mA |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension Height | 0.75 in |
| Size / Dimension Length | 1.6 in |
| Size / Dimension Width | 0.75 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 12 V |
