Description
General part information

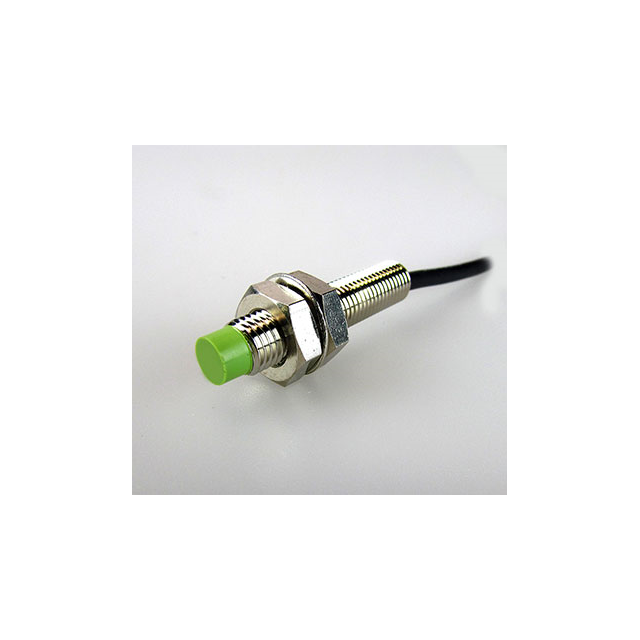

PRL08-2DN
SENSOR PROX INDUCTIVE 2MM CYLIND
Technical Specifications
Parameters and characteristics for this part
| Specification | PRL08-2DN |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M8 |
| Response Frequency | 1 kHz |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
