5-5175472-1
ActiveTE Connectivity AMP Connectors
CONN SCSI PL 20 POS 2.54MM SOLDER RA THRU-HOLE 20 TERMINAL 1 PORT TRAY
5-5175472-1
ActiveTE Connectivity AMP Connectors
CONN SCSI PL 20 POS 2.54MM SOLDER RA THRU-HOLE 20 TERMINAL 1 PORT TRAY
Description
General part information
CHAMP .050 Series I Series

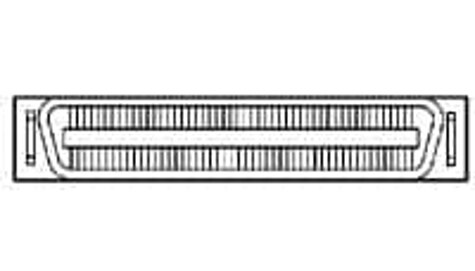

PCB Mount Header, Right Angle, Board-to-Board, 20 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), CHAMP .050 Series I
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-5175472-1 |
|---|---|
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Board to Board, High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
