Description
General part information
6013725

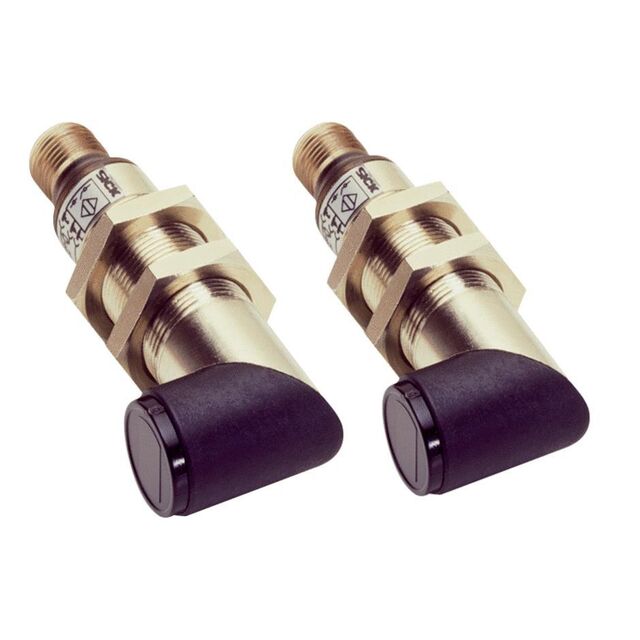

Through-Beam Optical Sensor 0" ~ 787.402" (0m ~ 20m) PNP - Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 6013725 |
|---|---|
| Adjustment Angle | 270 ° |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Infrared LED |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNN - Dark-ON, PNP, Dark-ON |
| Response Time | 2 ms |
| Sensing Distance Maximum | 787.402 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
