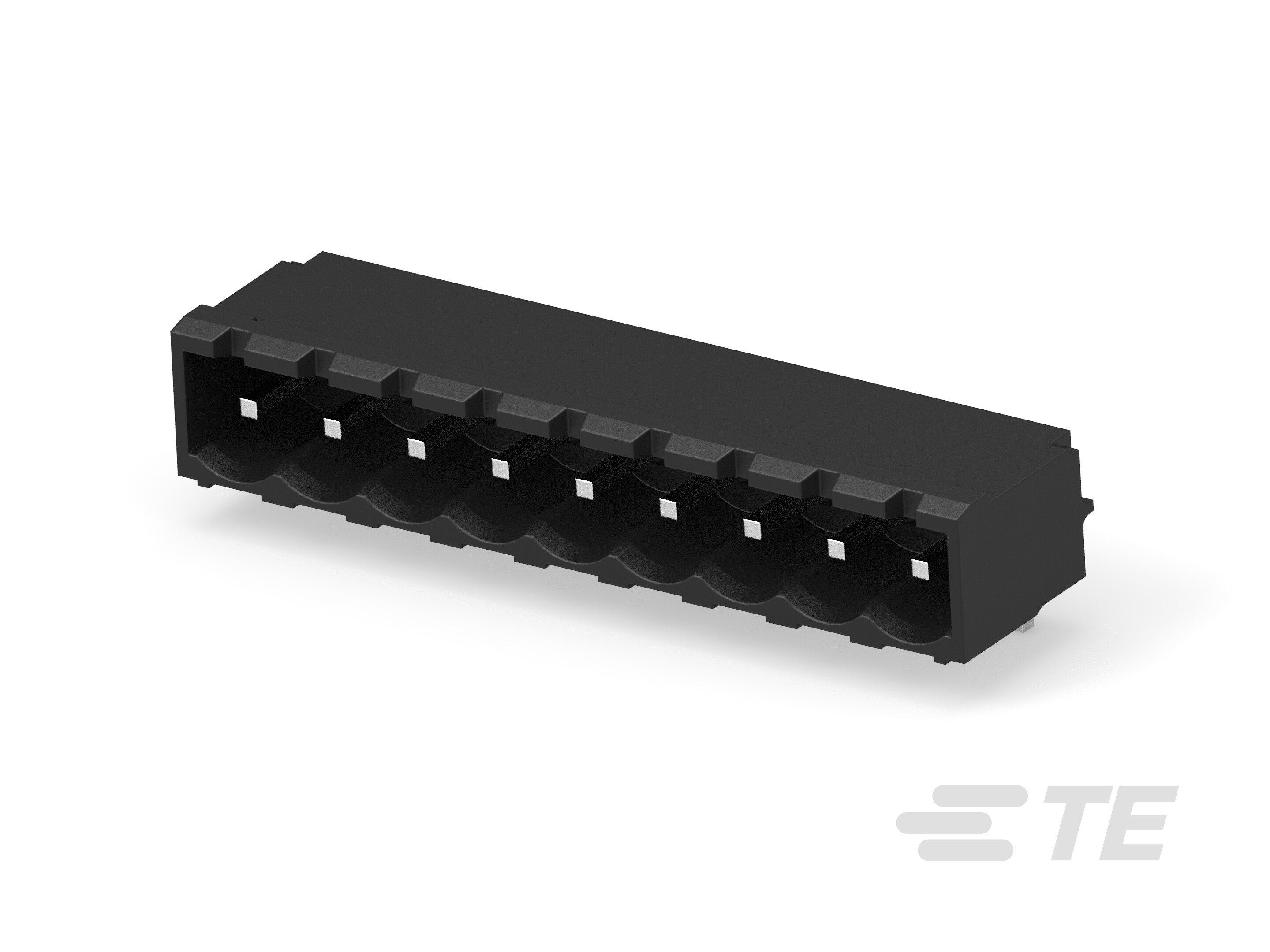

9POS HDR 90 DEG, HT,5.08MM PITCH,TL2.6MM-2342083-9

2342083-9

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 9POS HDR 90 DEG, HT 5.08MM PITCH,TL2.6MM

Find alt
9POS HDR 90 DEG, HT,5.08MM PITCH,TL2.6MM-2342083-9

2342083-9

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 9POS HDR 90 DEG, HT 5.08MM PITCH,TL2.6MM

Find alt

Description

General part information

2342083-9

9 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification2342083-9
ColorBlack
Contact Mating FinishTin
Current - UL11 A
FeaturesHigh Temp Housing
Header OrientationRight Angle
Header Orientation Angle90 °
Mounting TypeThrough Hole
Number of Levels1
Number of Positions9
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch5.08 mm
Positions Per Level9
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL300 V
