Part	Note	Mounting Type	Connector Type	Pitch	Contact Termination	Contact Type	Number of Positions	Color	Fastening Type	Insulation Material	Number of Rows	Row Spacing	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Contact Finish Thickness	Type	Contact Finish
KYOCERA AVX 609021304410000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	4	Green	Locking Ramp	Thermoplastic	1
KYOCERA AVX 609021310816000	Contacts Not Included	Panel Mount Snap-In	Receptacle	0.1 in	Crimp	Female Socket	10	Green	Locking Ramp	Thermoplastic	1
KYOCERA AVX 609021326420000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	26	Green	Locking Ramp	Thermoplastic	2	0.1 in
KYOCERA AVX 609021330420000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	30	Green	Locking Ramp	Thermoplastic	2	0.1 in

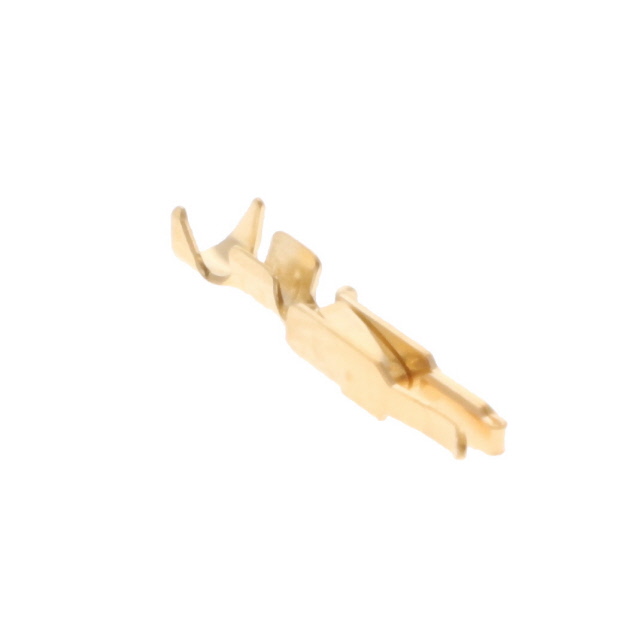

KYOCERA AVX 609021031300891					Crimp								28 AWG	22 AWG	Socket	30 µin	Stamped	Gold
KYOCERA AVX 609021312410000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	12	Green	Locking Ramp	Thermoplastic	1
KYOCERA AVX 609021032399891					Crimp								28 AWG	22 AWG	Socket	30 µin	Stamped	Gold
KYOCERA AVX 609021310410000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	10	Green	Locking Ramp	Thermoplastic	1
KYOCERA AVX 609021031300853					Crimp								28 AWG	22 AWG	Socket	7.87 µin	Stamped	Gold
KYOCERA AVX 609021314420000	Contacts Not Included	Free Hanging (In-Line)	Receptacle	0.1 in	Crimp	Female Socket	14	Green	Locking Ramp	Thermoplastic	2	0.1 in
