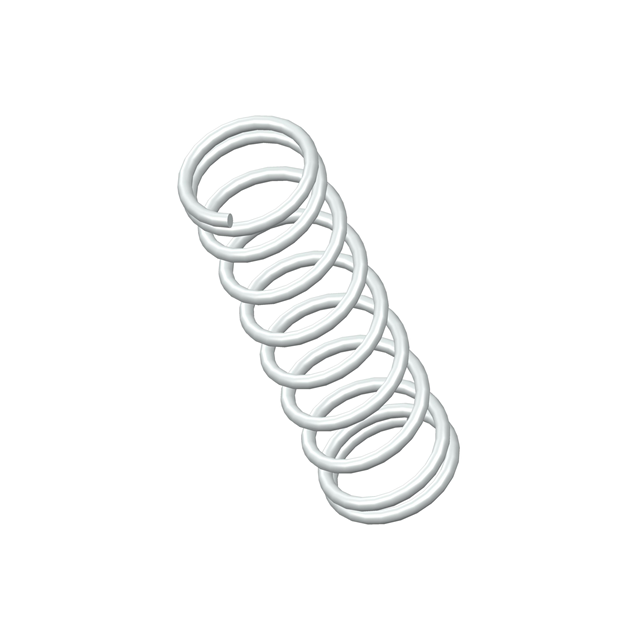

S-715CS
ActiveCentury Spring Corp
COMP O= .219,L= .75,W= .022
S-715CS
ActiveCentury Spring Corp
COMP O= .219,L= .75,W= .022
Description
General part information
S-715CS
COMP O= .219,L= .75,W= .022
Technical Specifications
Parameters and characteristics for this part
| Specification | S-715CS |
|---|---|
| Diameter - Inside | 0.175 in |
| Diameter - Outside | 0.219 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 5.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.022 in |
