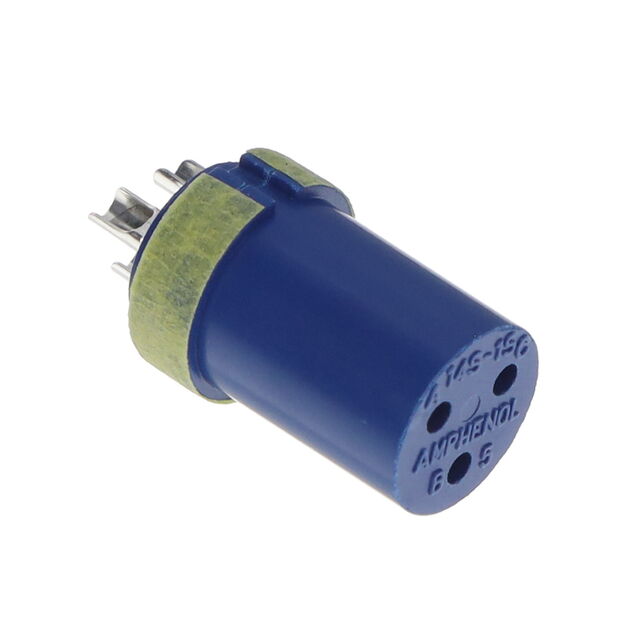

97-14S-1S
ActiveAmphenol Aerospace Operations
MIL-5015 97 THREADED INSERT ASSY
97-14S-1S
ActiveAmphenol Aerospace Operations
MIL-5015 97 THREADED INSERT ASSY
Description
General part information
97-14S-1S
3 Position Circular Connector Insert, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-14S-1S |
|---|---|
| Applications | Automotive, Industrial |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Requires Shell, Insert Only |
| Insert Material | Diallyl Phthalate, DAP |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Shell Size - Insert | 14S-1 |
| Shielding | Unshielded |
| Termination | Solder Cup |
