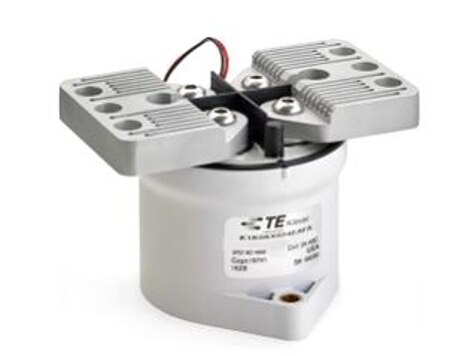

7-1618413-0
ActiveTE Connectivity AMP Connectors
CONTACTORS - ELECTROMECHANICAL K1K06H024EAFA=CNTCTR SPST-NO W/AUX
7-1618413-0
ActiveTE Connectivity AMP Connectors
CONTACTORS - ELECTROMECHANICAL K1K06H024EAFA=CNTCTR SPST-NO W/AUX
Description
General part information
7-1618413-0
High Voltage Contactor, DC, 1 Form X SPST-NO-DM, 1000 A Contact Rating, 32 VDC Coil Voltage, Chassis Mount, Environmentally Sealed
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-1618413-0 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 1 kA |
| Features | Hermetically, Sealed |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 10 VDC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Switching Voltage DC (Max) | 900 VDC |
| Termination Style | Wire Leads, Stud |
