CP105559415
ActiveSame Sky (Formerly CUI Devices)

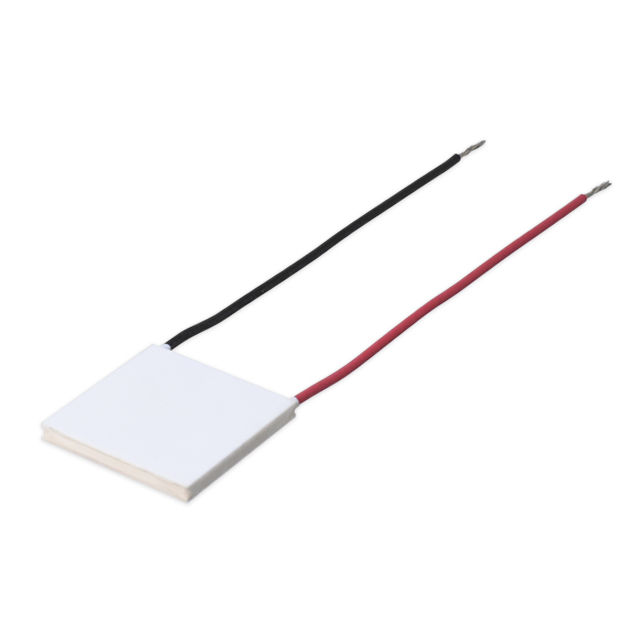

PELTIER, 55 X 59 X 4.15, 10 A, W
CP105559415
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 55 X 59 X 4.15, 10 A, W
Description
General part information
CP105559415
Peltier Module 140.0W @ 27°C 10 A
Technical Specifications
Parameters and characteristics for this part
| Specification | CP105559415 |
|---|---|
| Current - Max | 10 A |
| Delta Tmax | 70 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 4.15 mm |
| Maximum Power Dissipation (Qmax) | 140 W |
| Number of Stages | 1 |
| Resistance | 1.82 Ohms |
| Size / Dimension Length | 59 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 55 mm |
| Voltage - Max | 24.6 V |
