0898LP18A035001E
ObsoleteJohanson Technology Inc.

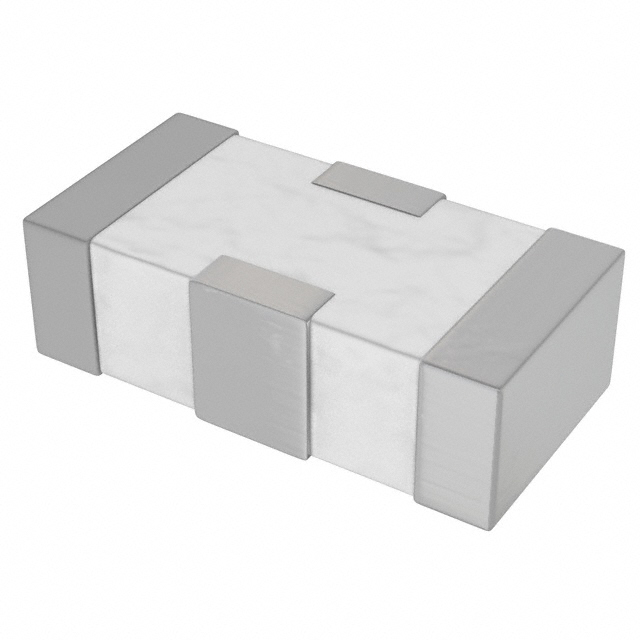

RF FILTER LOW PASS 897.5MHZ 1206
0898LP18A035001E
ObsoleteJohanson Technology Inc.
RF FILTER LOW PASS 897.5MHZ 1206
Description
General part information
0898LP18A035001E
897.5MHz Center Frequency Low Pass RF Filter (Radio Frequency) 35MHz Bandwidth 0.6dB 1206 (3216 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 0898LP18A035001E |
|---|---|
| Bandwidth | 35 MHz |
| Filter Type | Low Pass |
| Frequency (Center) | 897.5 MHz |
| Height (Max) | 0.047 in |
| Insertion Loss | 0.6 dB |
| Mounting Type | Surface Mount |
| Package Name | 1206 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
