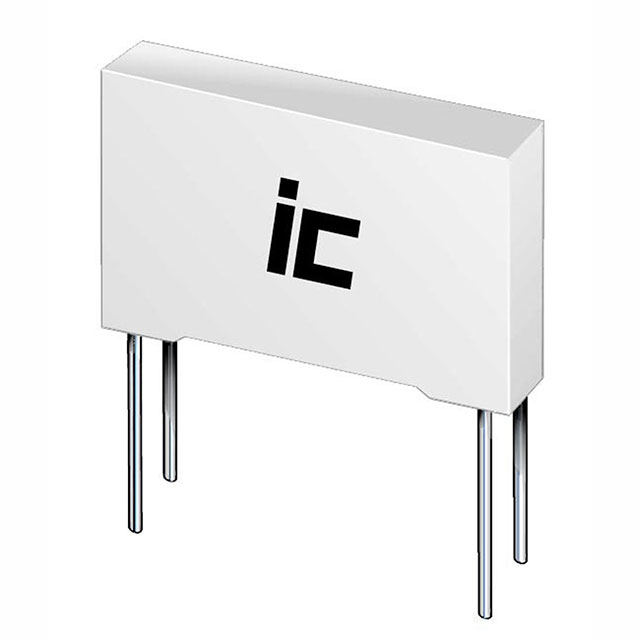

Specification	153PSB302K2H

Applications	High Pulse, Snubber, Switching, High Frequency, DV/DT
Capacitance	0.015 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	38 mOhm
Height - Seated (Max)	0.787 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	1.26 in
Size / Dimension Width	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	750 VAC
Voltage Rating - DC	3000 V
