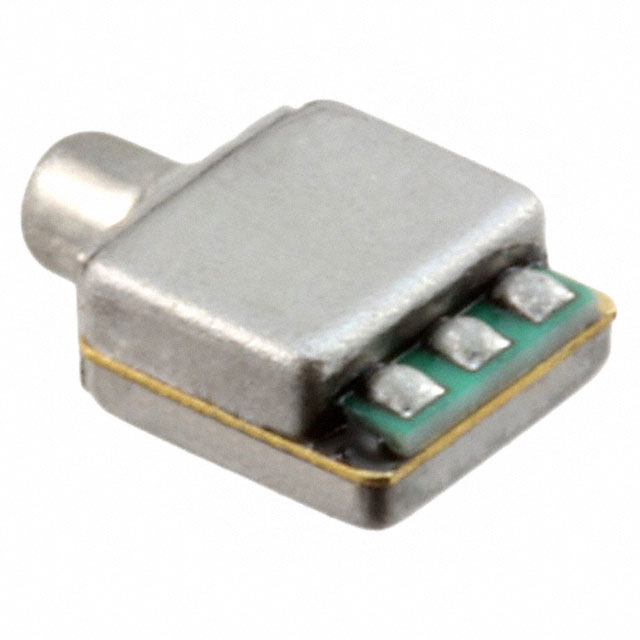

TM-24546-C36
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -54.5DB
TM-24546-C36
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -54.5DB
Description
General part information
TM-24546-C36
100 Hz ~ 6.4 kHz Analog Microphone Electret Condenser 0.9 V ~ 1.6 V Omnidirectional (-54.5dB ±3dB @ 74dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | TM-24546-C36 |
|---|---|
| Current - Supply | 50 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 6.4 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.07 in |
| Impedance | 4.4 kOhms |
| Output Type | Analog |
| Port Location | Side |
| Sensitivity (Nominal) | -54.5 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Square |
| Size / Dimension Length | 0.141 in |
| Size / Dimension Width | 0.141 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 1.3 VDC |
| Voltage Range (Max) | 1.6 V |
| Voltage Range (Min) | 0.9 V |
