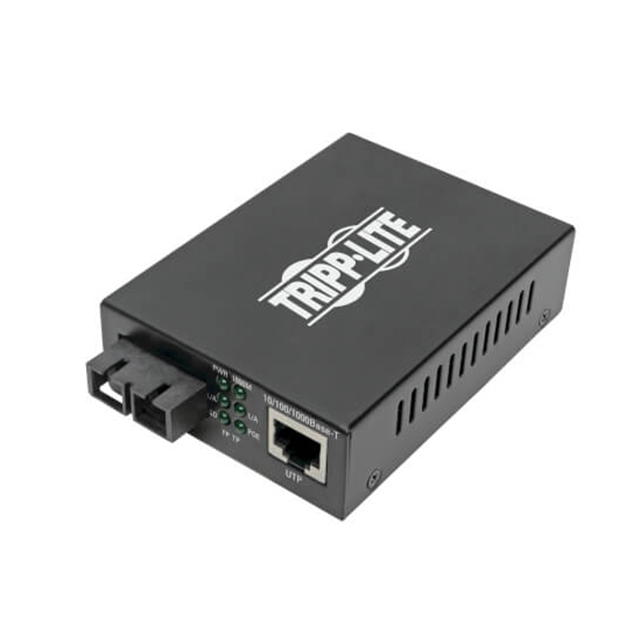

N785-P01-SC-MM2
ActiveEaton Tripp Lite
GIGABIT MULTIMODE FIBER TO ETHER
N785-P01-SC-MM2
ActiveEaton Tripp Lite
GIGABIT MULTIMODE FIBER TO ETHER
Description
General part information
N785-P01-SC-MM2
GIGABIT MULTIMODE FIBER TO ETHER
Technical Specifications
Parameters and characteristics for this part
| Specification | N785-P01-SC-MM2 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 1 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Distance | 2 km |
| Fiber Mode | Multimode |
| Fiber Ports | 1 |
| Fiber Type | Gigabit |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
