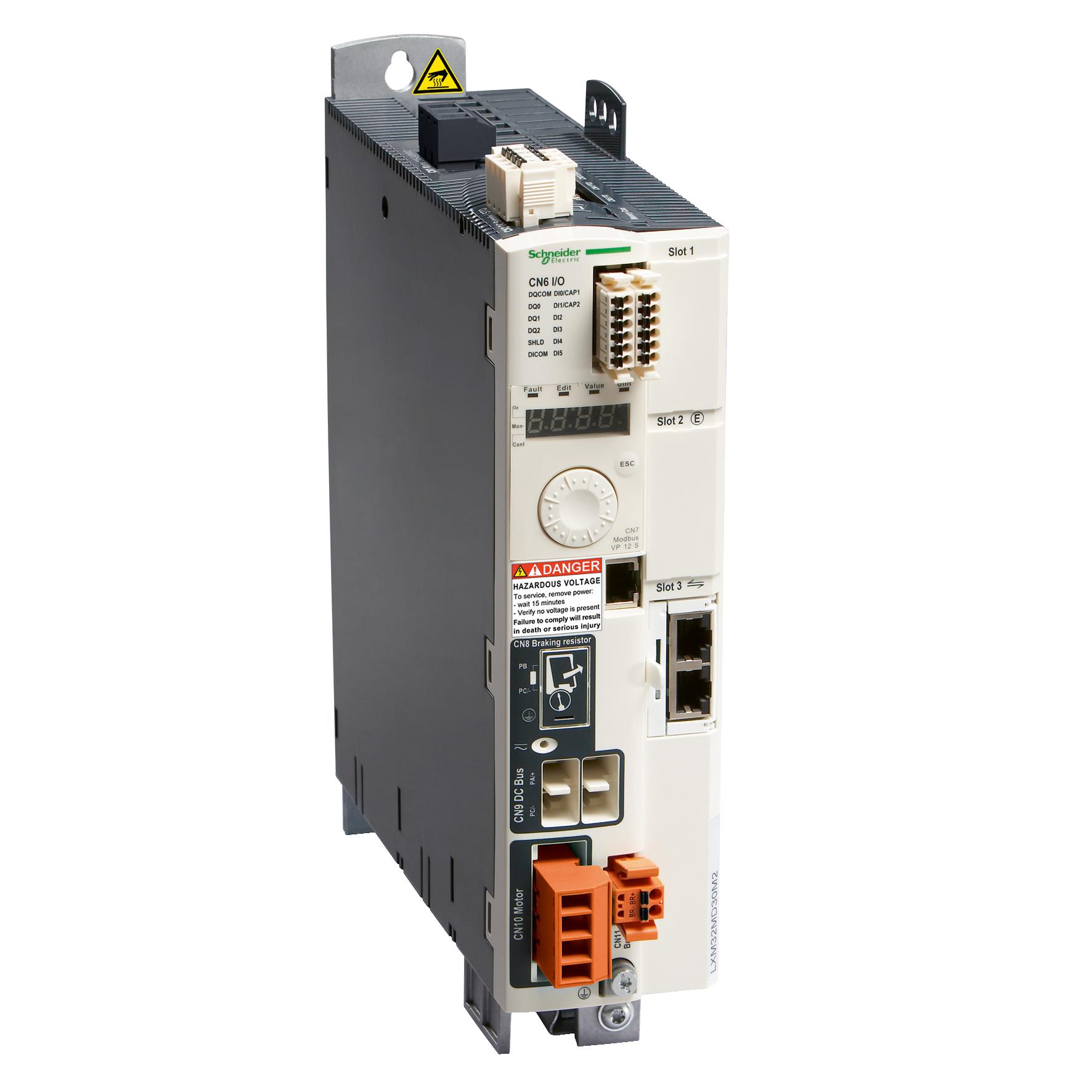

LXM32MD30N4
ActiveSCHNEIDER ELECTRIC
SERVO MOTOR DRIVE, 3 KW, THREE PHASE, 10 A, 50HZ / 60HZ, 200 V, 480 V
LXM32MD30N4
ActiveSCHNEIDER ELECTRIC
SERVO MOTOR DRIVE, 3 KW, THREE PHASE, 10 A, 50HZ / 60HZ, 200 V, 480 V
Description
General part information
Lexium 32 Series
Servo AC 200 ~ 480VAC Supply 30A 200 ~ 480V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | LXM32MD30N4 |
|---|---|
| Control / Drive Type | Servo AC |
| Current - Output | 30 A |
| For Use With/Related Products | Lexium 32 Series |
| Interface | RS-485, Modbus TCP, CAN, EtherCat |
| Motor Type | Servo |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Type | Module |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 200 V |
| Voltage - Supply (Maximum) | 480 VAC |
| Voltage - Supply (Minimum) | 200 VAC |
| Wattage - Load | 5600 W |
