B82464G4222M000
ActiveEPCOS - TDK Electronics
FIXED IND 2.2UH 6.5A 10 MOHM SMD
B82464G4222M000
ActiveEPCOS - TDK Electronics
FIXED IND 2.2UH 6.5A 10 MOHM SMD
Description
General part information
B82464G4222M000

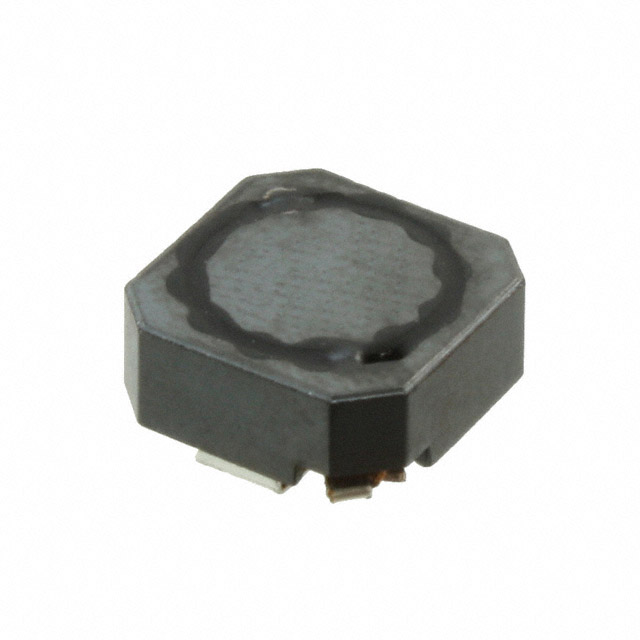

2.2 µH Shielded Drum Core, Wirewound Inductor 6.5 A 10mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82464G4222M000 |
|---|---|
| Current - Saturation (Isat) | 7 A |
| Current Rating | 6.5 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Frequency - Self Resonant | 72 MHz |
| Height - Seated (Max) | 0.189 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.409 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
