FBTH1608HL121-T
ActiveTaiyo Yuden

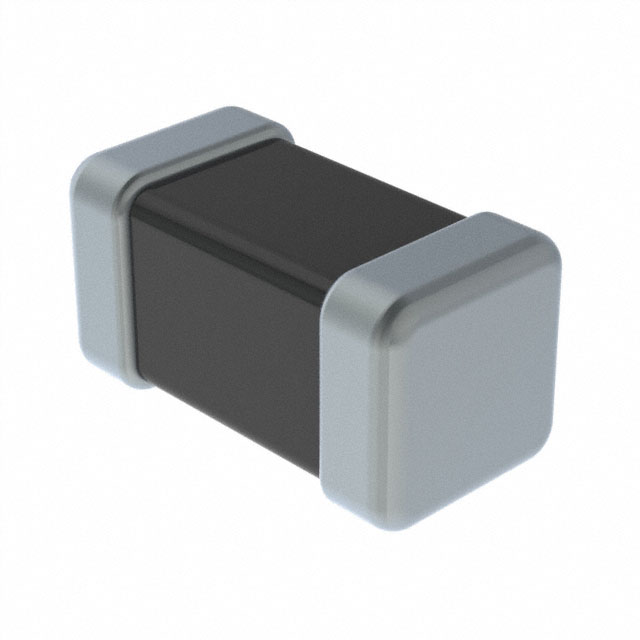

FERRITE BEAD, 0603 [1608 METRIC], 120 OHM, 950 MA, FB SERIES, 0.13 OHM, ± 25%
FBTH1608HL121-T
ActiveTaiyo Yuden
FERRITE BEAD, 0603 [1608 METRIC], 120 OHM, 950 MA, FB SERIES, 0.13 OHM, ± 25%
Description
General part information
FBTH1608HL121-T
120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 950mA 130mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FBTH1608HL121-T |
|---|---|
| Current Rating (Max) | 950 mA |
| DC Resistance (DCR) (Max) | 130 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.037 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
