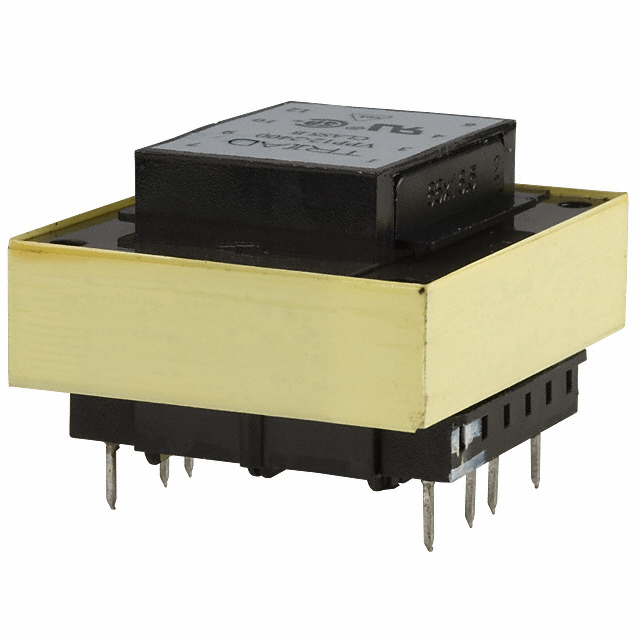

VPP24-1250-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 30VA TH
VPP24-1250-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 30VA TH
Description
General part information
VPP24-1250-B
PWR XFMR LAMINATED 30VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | VPP24-1250-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 2.5 A |
| Current - Output (Max) Series | 1.25 A |
| Height - Seated (Max) | 39.67 mm |
| Mounting Type | Through Hole |
| Power - Max | 30 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 66.68 mm |
| Size / Dimension Width | 55.55 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 1.2 lbs |
