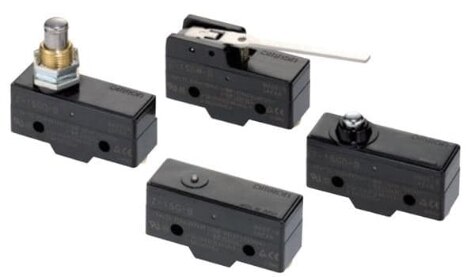

Specification	Z-10FW22Y55-B

Actuator Type	Roller, Lever
Circuit	SPDT (DB/DM)
Current Rating	10 A
Differential Travel (Linear)	0.04 in
Electrical Life (Cycles)	100000 Cycles
Ingress Protection	IP62
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Chassis Mount
Operating Force	0.25 kgf
Operating Position (Length)	1.188 in
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-15 °C
Overtravel (Linear)	0.094 in
Release Force	35 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z Series

Part	Release Force	Actuator Type	Switch Function	Termination Style	Overtravel (Linear)	Electrical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Pretravel (Length)	Voltage Rating - AC	Current Rating	Voltage Rating - DC	Operating Force (Max)	Operating Force (Min)	Mounting Type	Mechanical Life (Cycles)	Circuit	Ingress Protection	Differential Travel (Linear)	Operating Position (Length)	Cable Length	Features	Operating Force
Omron Automation and Safety Z-15HD-B	114 gf	Round (Pin Plunger)	On-Mom	Screw Terminal	0.062 in	500000	-25 °C	80 °C	0.012 in	125 V	2 A 15 A	30 V	285 gf	200 gf	Chassis Mount	20000000 Cycles	SPDT	IP00	0.001 in	0.846 in
Omron Automation and Safety Z-15GW35-B			On-Mom	Screw Terminal		500000	-25 °C	80 °C		125 V	6 A 15 A	30 V			Chassis Mount	20000000 Cycles	SPDT	IP40
Omron Automation and Safety Z-15HNJS55-MR 1M		Spring Wire	On-Mom	Cable Leads		100000 Cycles	-15 °C	80 °C	0.984 in	125 V	2 A 15 A	30 V			Chassis Mount	1000000 Cycles	SPDT	IP62			1 m	Cable Length	15 gf
Omron Automation and Safety Z-15GL-B	14 gf	Leaf Lever	On-Mom	Screw Terminal	0.062 in	500000	-25 °C	80 °C		125 V	6 A 15 A	30 V			Chassis Mount	10000000 Cycles	SPDT	IP00	0.05 in	0.685 in			141 gf
Omron Automation and Safety Z-15GS55		Round (Pin Plunger)	On-Mom	Solder Lug			-15 °C	80 °C		125 V	6 A 15 A	30 V			Chassis Mount		SPDT	IP62
Omron Automation and Safety Z-15EQ21-B	114 gf	Cross Roller Plunger	On-Mom	Screw Terminal	0.141 in	100000 Cycles	-25 °C	80 °C	0.03 in	125 V	15 A	30 V	800 gf	625 gf	Panel Mount	300000 Cycles	SPDT	IP00	0.005 in	1.313 in
Omron Automation and Safety Z-10FW1Y55-BC			On-Mom	Screw Terminal		100000 Cycles	-15 °C	80 °C		125 V	10 A	30 V			Chassis Mount	500000 Cycles	SPDT	IP62
Omron Automation and Safety Z-15HD	114 gf	Round (Pin Plunger)	On-Mom	Solder Lug	0.062 in	500000	-25 °C	80 °C	0.012 in	125 V	2 A 15 A	30 V	285 gf	200 gf	Chassis Mount	20000000 Cycles	SPDT	IP00	0.001 in	0.846 in
Omron Automation and Safety Z-01H-B	80 gf	Round (Pin Plunger)	On-Mom	Screw Terminal	0.005 in	500000	-25 °C	80 °C	0.02 in	125 V	100 mA	30 V			Chassis Mount	20000000 Cycles	SPDT	IP00	0.002 in	0.625 in			0.25 kgf
Omron Automation and Safety Z-15G-C		Round (Pin Plunger)	On-Mom	Solder Lug		500000	-25 °C	80 °C		125 V	6 A 15 A	30 V			Chassis Mount	20000000 Cycles	SPDT	IP00
