LCCA30468-FT5
ActivePasternack
SMA MRA TO BNC F USING LC141TBJ,
LCCA30468-FT5
ActivePasternack
SMA MRA TO BNC F USING LC141TBJ,
Description
General part information
LCCA30468-FT5

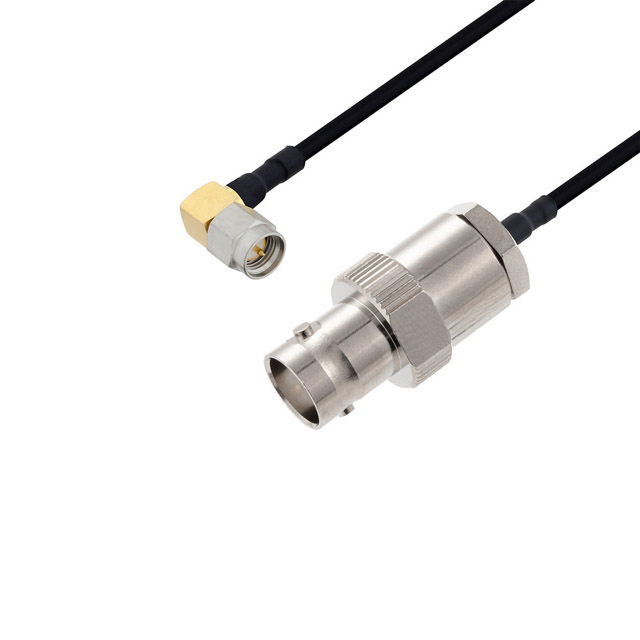

Cable Assembly Coaxial BNC to SMA LC141TBJ 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30468-FT5 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 2 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
