Description
General part information

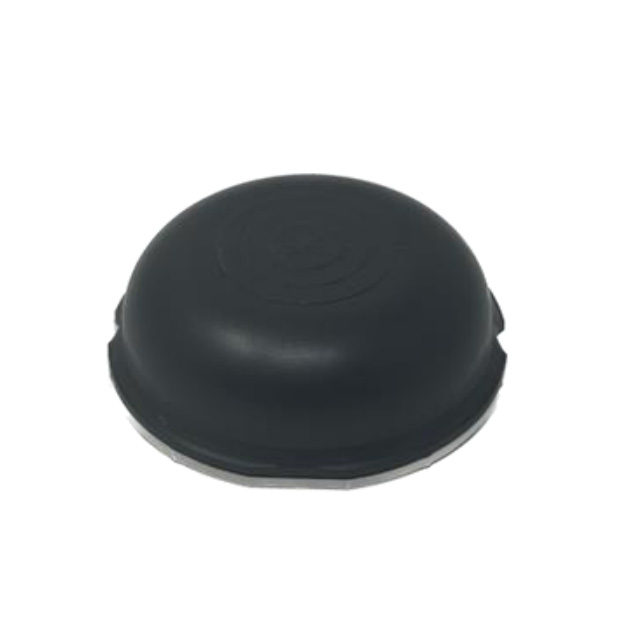

33-SSL889XF-3-20
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS Dome SMA Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-SSL889XF-3-20 |
|---|---|
| Antenna Type | Dome |
| Applications | SBAS, QZSS, Galileo, IRNSS, GPS, GNSS, LTE, NavIC, GLONASS, BEIDOU |
| Features | LNA, Filter |
| Frequency (Band) | 1.582 GHz |
| Frequency (Center) | 1.222 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.255 GHz |
| Frequency Range (Band 1) Minimum | 1.189 GHz |
| Frequency Range (Band 2) Maximum | 1.606 GHz |
| Frequency Range (Band 2) Minimum | 1.559 GHz |
| Gain | 28 dBi |
| Height (Max) | 0.798 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Navigation, Cellular |
| Termination | SMA |
| VSWR | 1.8 |
