1761607-3

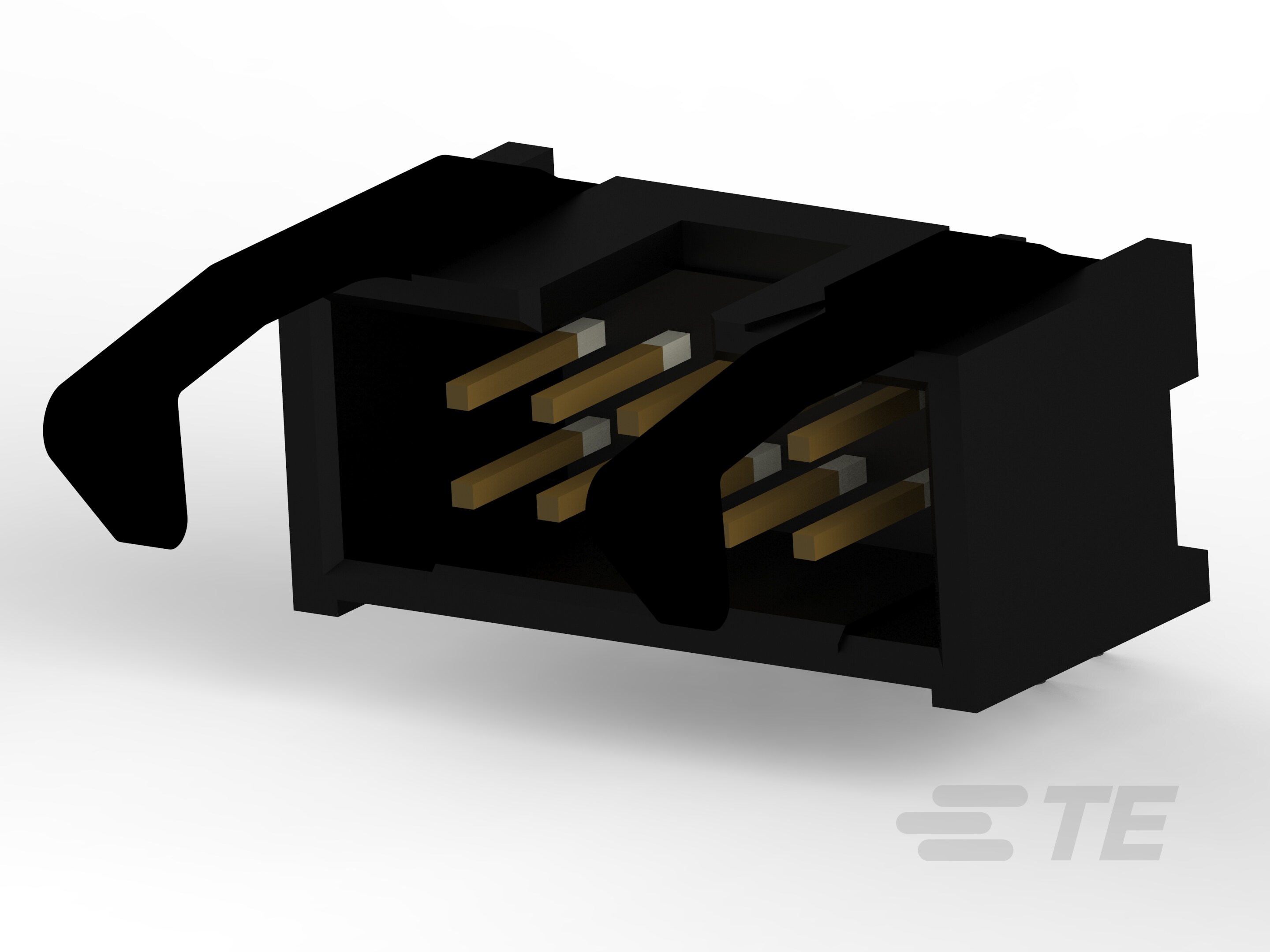

Wire-to-Board, 10 Position, 2.54 mm [.1 in] Centerline, Right Angle, Through Hole - Solder, 2 Row, Plug, Low Profile, Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1761607-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold-Palladium, Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Mating | 0.237 in |
| Contact Length - Post | 0.102 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Per Contact) | 1 A |
| Fastening Type | Long, Latch Lock/Eject Hooks |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.362 in |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
