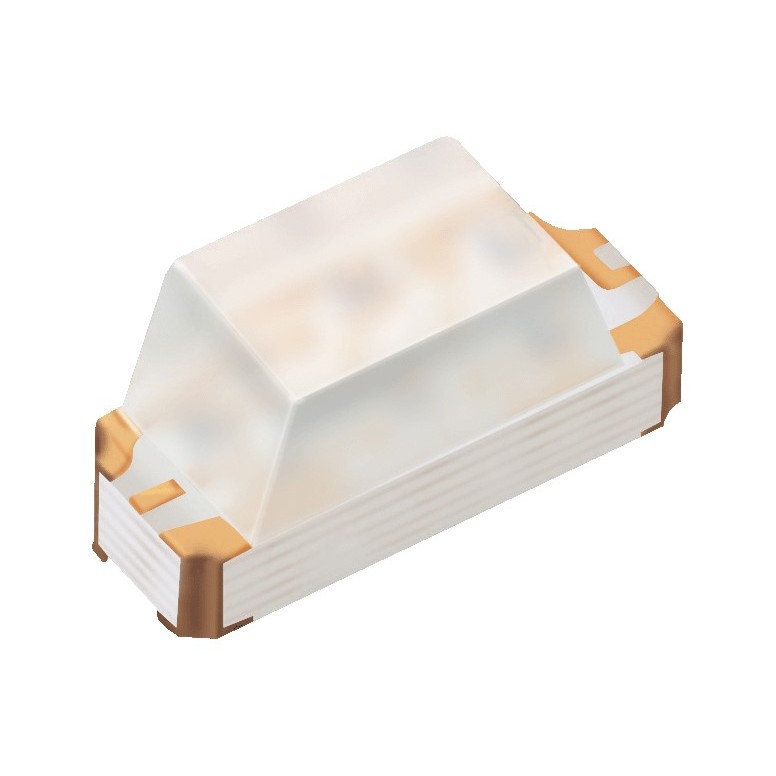

22-23C/R6GHBHW-C01/2C
LED RGB DIFFUSED SMD RA
Technical Specifications
Parameters and characteristics for this part
| Specification | 22-23C/R6GHBHW-C01/2C |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Common Anode |
| Current - Test (Blue) | 5 mA |
| Current - Test (Green) | 5 mA |
| Current - Test (Red) | 5 mA |
| Current - Test Colors | Blue, Green, Red |
| Height (Max) | 0.55 mm |
| Lens Color | White |
| Lens Length | 2 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Lens Width | 0.5 mm |
| Mounting Type | Right Angle, Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Package Name | Chip LED |
| Size / Dimension Length | 2.7 mm |
| Size / Dimension Width | 1.35 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) (Blue) | 2.9 V |
| Voltage - Forward (Vf) (Typ) (Green) | 2.9 V |
| Voltage - Forward (Vf) (Typ) (Red) | 1.85 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Blue, Red |
| Wavelength - Dominant (Blue) | 473 nm |
| Wavelength - Dominant (Green) | 532 nm |
| Wavelength - Dominant (Red) | 619 nm |
| Wavelength - Dominant Color | Blue, Green, Red |
| Wavelength - Peak (Blue) | 468 nm |
| Wavelength - Peak (Green) | 518 nm |
| Wavelength - Peak (Red) | 626 nm |
| Wavelength - Peak Colors | Blue, Green, Red |
