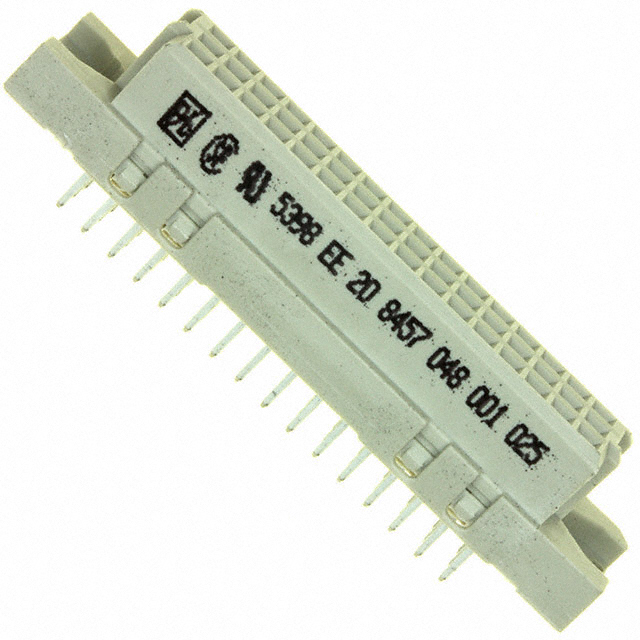

208457048001025
ObsoleteKYOCERA AVX
CONN DIN RCPT 48POS PCB GOLD
208457048001025
ObsoleteKYOCERA AVX
CONN DIN RCPT 48POS PCB GOLD
Description
General part information
208457048001025
48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 208457048001025 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
| Style | C/2 (1/2 C) |
| Termination | Solder |
