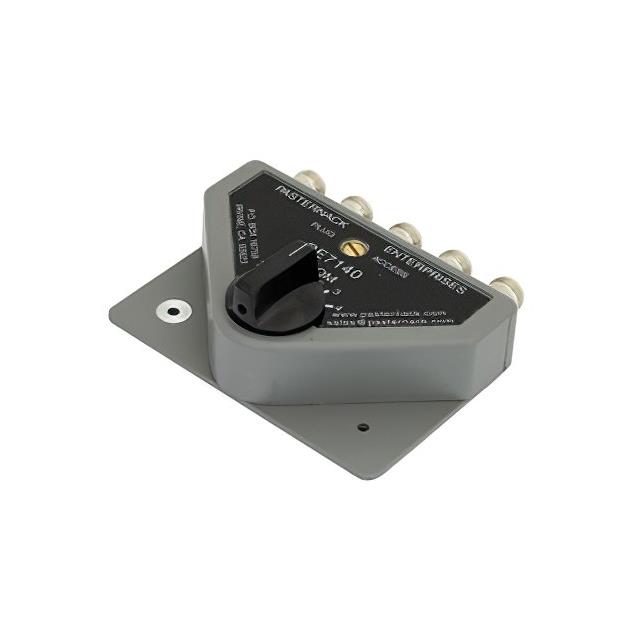

PE7140
ActivePasternack
SP4T N MANUAL KNOB SWITCH SURGE
PE7140
ActivePasternack
SP4T N MANUAL KNOB SWITCH SURGE
Description
General part information
PE7140
RF Switch IC General Purpose SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE7140 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 1.3 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss (Max) | 0.5 dB |
| Isolation (Min) | 50 dB |
| RF Type | General Purpose |
| Test Frequency | 450 MHz |
