0.8FH,P06H.5,100,08/Sn,TU-5179029-4

5179029-4

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS 100P 6MM PLUG STAK HIGHT 6 10 14MM

Find alt
0.8FH,P06H.5,100,08/Sn,TU-5179029-4

5179029-4

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS 100P 6MM PLUG STAK HIGHT 6 10 14MM

Find alt

Description

General part information

1 mm Free Height Series

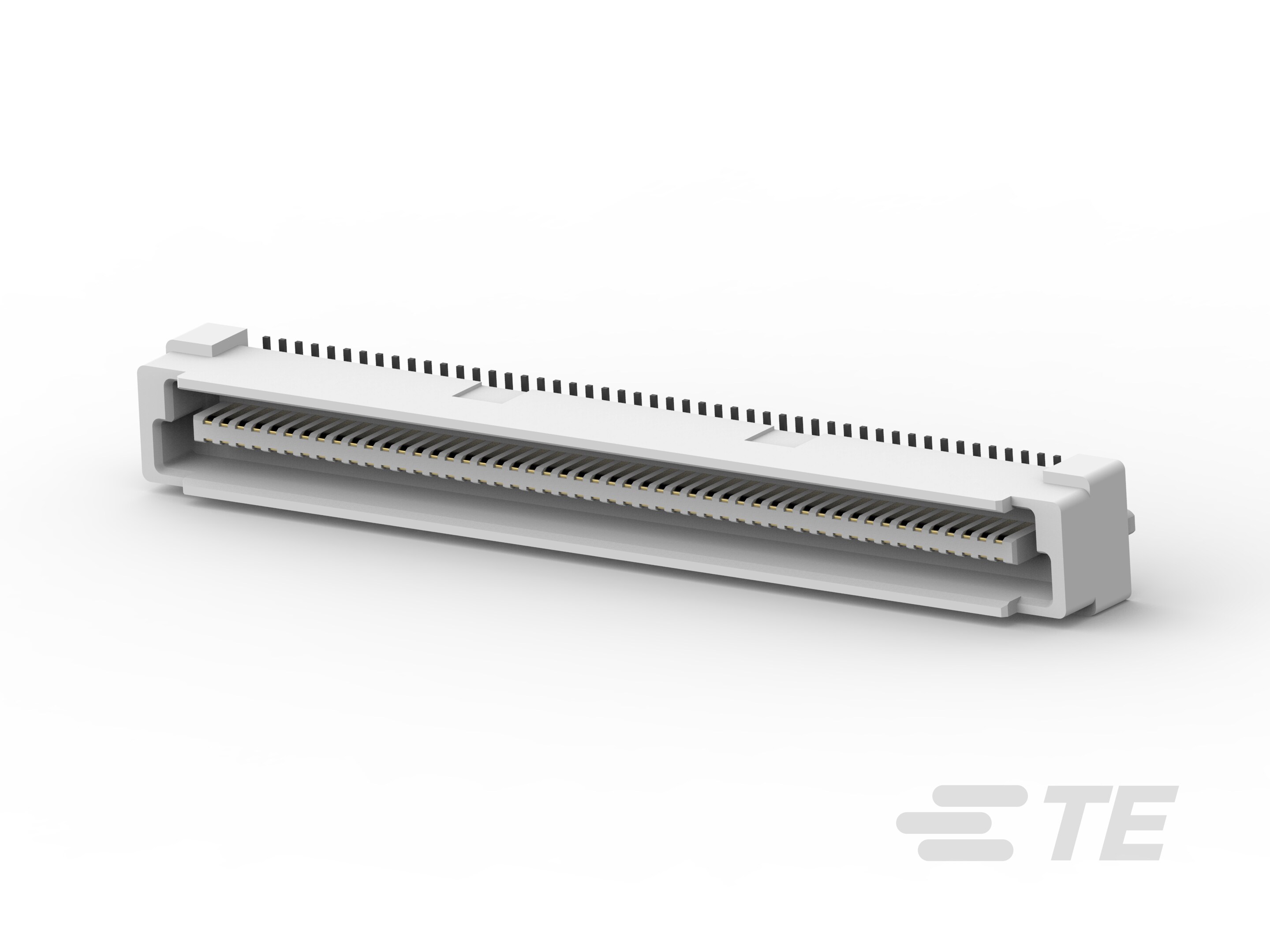

PCB Mount Header, Vertical, Board-to-Board, 100 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height

Technical Specifications

Parameters and characteristics for this part

Specification5179029-4
Connector TypeCenter Strip Contacts, Plug
Contact FinishGold
Contact Finish Thickness8 µin
FeaturesBoard Guide
Height Above Board0.22 in
Mated Stacking Height Options10mm, 14mm, 18mm, 6mm
Mounting TypeSurface Mount
Number of Positions100
Number of Rows2
Pitch0.031 in
