XAVAC15M/SG.0/AA
ActiveMcGill Microwave Systems
D SUB ADAPTER, PLUG/RCPT, 15POS ROHS COMPLIANT: YES
XAVAC15M/SG.0/AA
ActiveMcGill Microwave Systems
D SUB ADAPTER, PLUG/RCPT, 15POS ROHS COMPLIANT: YES
Description
General part information
XAVAC15M/SG.0/AA

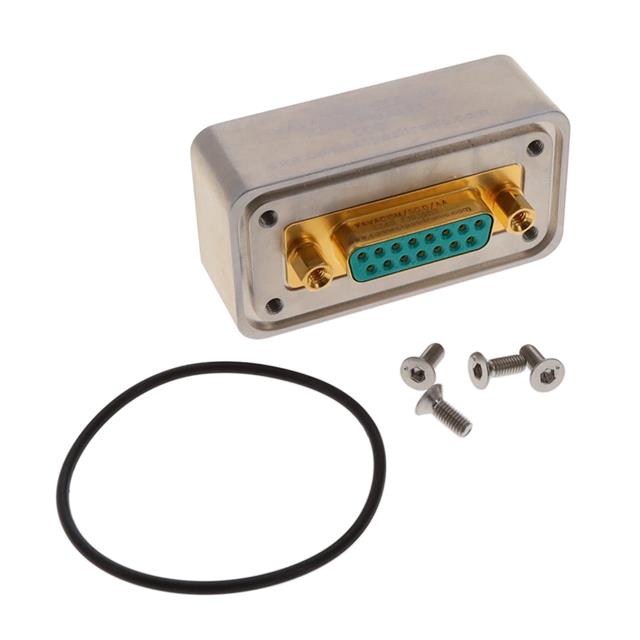

Adapter Connector D-Sub, 15 Pin Male To D-Sub, 15 Pin Female Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | XAVAC15M/SG.0/AA |
|---|---|
| Connector Style | Connector Saver |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Convert From (Adapter End) Pin Count | 15 pins |
| Convert From (Adapter End) Pin Gender | Female |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | Pin Male, D-Sub |
| Convert To (Adapter End) Pin Count | 15 pins |
| Finish | Gold Plated |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Material | Brass |
| Shielding | Shielded |
| Voltage Rating | 300 VAC/DC |
