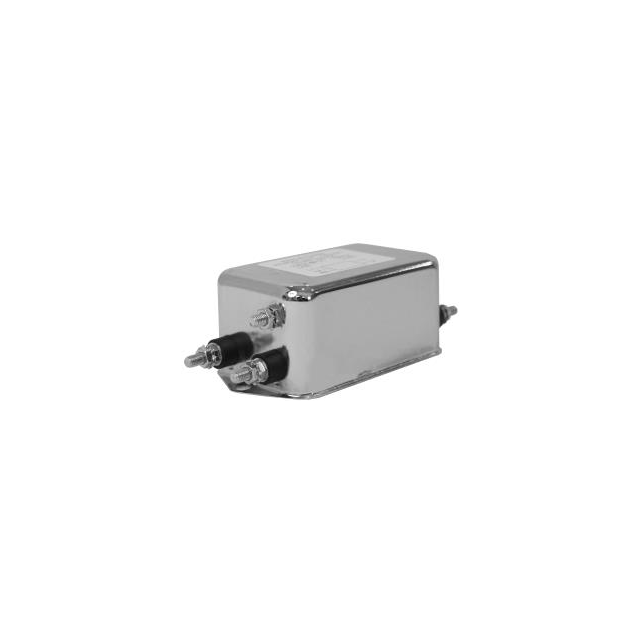

Specification	RPM6200-5-S

Configuration	Two Stage
Current	5 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Termination Size	5 mm
Termination Style	Threaded Post, Threaded Post (M5)
Thread Size	M5
Voltage - Rated AC	400 V

RP428 Series

...

Part	Filter Subtype	Filter Type	Applications	Termination Style	Approval Agency	Mounting Type	Configuration	Current	Voltage - Rated AC	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating (Min)	Frequency - Operating	Frequency - Operating (Max)	Termination Size	Thread Size
Astrodyne TDI RP428-80-10-W	Wye	Three Phase	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	80 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-8-10-W	Wye	Three Phase	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	8 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-25-0-S	Wye	Three Phase	General Purpose	Threaded Post Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz	5 mm	M5
Astrodyne TDI RP428-400-100-B	Wye	Three Phase	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	400 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-200-100-C	Wye	Three Phase	General Purpose	Terminal Block	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	200 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-25-1000-S	Wye	Three Phase	General Purpose	Threaded Post Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz	5 mm	M5
Astrodyne TDI RP428-8-2000-W	Wye	Three Phase	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	8 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-25-1000-C	Wye	Three Phase	General Purpose	Terminal Block	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-600-10-B	Wye	Three Phase	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	600 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz
Astrodyne TDI RP428-300-100-B	Wye	Three Phase	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	300 A	480 V	-25 °C	100 °C	3.5 kV	50 Hz	50Hz 60Hz	60 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RPM6200-5-S | Datasheet
