1424489

Active

Phoenix Contact

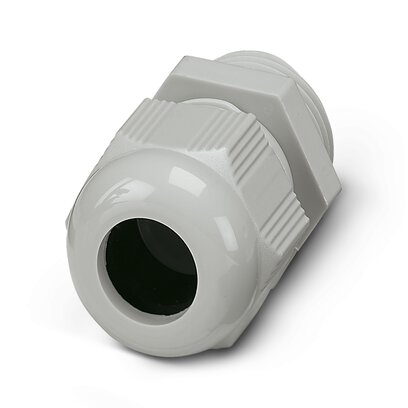

CABLE GLAND 10-14MM PG16

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM PG16

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424489	G-INS-PG16 Series

Color	Gray	Gray, Black, Silver
Includes	Seal	Seal, O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP68 - Dust Tight, Waterproof, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Thread Length	10 mm	6.5 - 10 mm
Thread Length	0.394 in	0.256 - 0.394 in
Thread Size	PG16	PG16
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14MM PG16

Part	Type	Thread Size	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1411144	Cable Gland	PG16	Gray	14 mm	0.551 "	10 mm	0.394 in	IP66/IP68	100 °C	-40 °C	Polyamide (PA), Nylon	Seal	0.394 in	10 mm
Phoenix Contact 1424499	Cable Gland	PG16	Black	14 mm	0.551 "	10 mm	0.394 in	IP68 - Dust Tight, Waterproof	100 °C	-40 °C	Polyamide (PA), Nylon	Seal	0.394 in	10 mm
Phoenix Contact 1424489	Cable Gland	PG16	Gray	14 mm	0.551 "	10 mm	0.394 in	IP68 - Dust Tight, Waterproof	100 °C	-40 °C	Polyamide (PA), Nylon	Seal	0.394 in	10 mm
Phoenix Contact 1411174	Cable Gland	PG16	Silver	14 mm	0.551 "	6.5 mm	0.256 in	IP66, IP68, IP69	100 °C	-40 °C	Brass, Nickel Plated	O-Ring, Seal	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG16 Gray
