Description
General part information

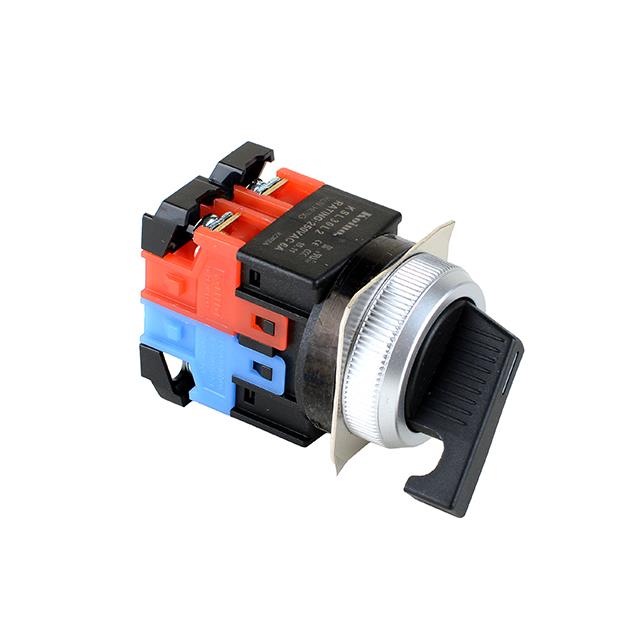

KSL25L3-11
Selector Switch 3 Position DPST-NO/NC 6A (AC), 3A (DC) 250 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KSL25L3-11 |
|---|---|
| Approval Agency | cULus, CE |
| Circuit | DPST-NO/NC |
| Current Rating | 6 A, 3 A |
| Electrical Life (Cycles) | 500000 |
| Features | Round, Bezel, Black Knob |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 25.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
