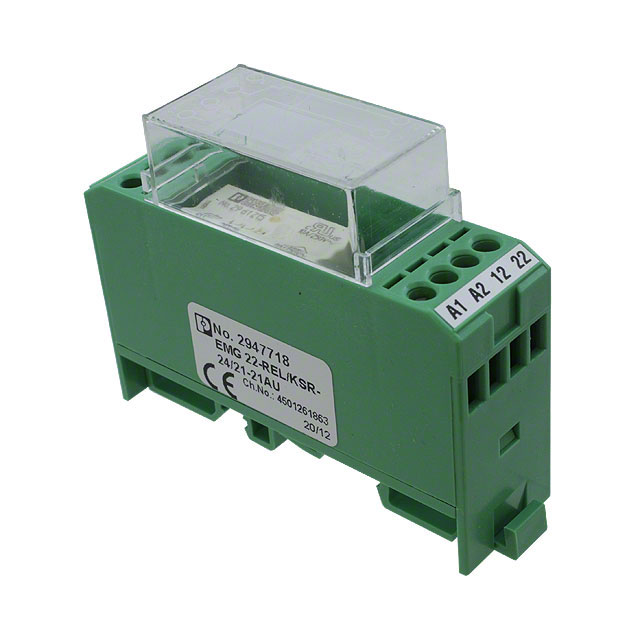

2947718
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2947718
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2947718 | 29477 Series |
|---|---|---|
| Approval Agency | - | EAC |
| Coil Current | - | 18 mA |
| Coil Resistance | - | 1.3 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 24 VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | - | 6 A |
| Features | Socket Included | Socket Included, Lighted Indicator |
| Load - Max Switching | - | 144 - 1500 VA |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | - | 8 ms |
| Operating Temperature | - | 50 °C |
| Operating Temperature | - | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | - | 10 ms |
| Switching Voltage | - | 250 VAC |
| Termination Style | - | Screw Terminal |
29477 Series
RELAY GEN PURPOSE DPDT 24V
| Part | Features | Mounting Type | Contact Form | Relay Type | Contact Material | Coil Voltage | Coil Type | Load - Max Switching | Coil Current | Operate Time | Switching Voltage | Coil Resistance | Release Time | Termination Style | Contact Rating (Current) | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2947718 | Socket Included | DIN Rail | DPDT (2 Form C) | General Purpose | Gold (Au), Silver Nickel (AgNi) | 24 VAC | Non Latching | |||||||||||
Phoenix Contact 2947721 | Lighted Indicator, Socket Included | DIN Rail | SPDT (1 Form C) | General Purpose | Gold (Au), Silver Nickel (AgNi) | 24 VAC | Non Latching | 144 W, 1500 VA | 18 mA | 8 ms | 250 VAC, 250 VDC | 1.3 kOhms | 10 ms | Screw Terminal | 6 A | EAC | 50 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.59 | |
| 10 | $ 122.90 | |||
| 50 | $ 113.55 | |||
Description
General part information
29477 Series
General Purpose Relay DPDT (2 Form C) 24VAC/DC Coil DIN Rail
