TMC8670-BI
ActiveAnalog Devices Inc./Maxim Integrated
ETHERNET ICS SERVO CONTROLLER IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC8670-BI
ActiveAnalog Devices Inc./Maxim Integrated
ETHERNET ICS SERVO CONTROLLER IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC8670-BI | TMC8670 Series |
|---|---|---|
| Applications | Industrial, General Purpose | Industrial, General Purpose |
| Contents | - | Board(s) |
| Current - Output | 8 mA | 8 mA |
| Function | Controller - Speed, Driver - Fully Integrated, Control and Power Stage | Motor Controller/Driver, Controller - Speed, Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, UART | SPI, UART |
| Motor Type - AC, DC | Brushless DC (BLDC) Servo, PMSM, Stepper, Brushless DC (BLDC) | Brushless DC (BLDC) Servo, PMSM, Stepper, Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase | Multiphase |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 C | -40 C |
| Output Configuration | High Side, Low Side, Pre-Driver - Half Bridge (3) | High Side, Low Side, Pre-Driver - Half Bridge (3) |

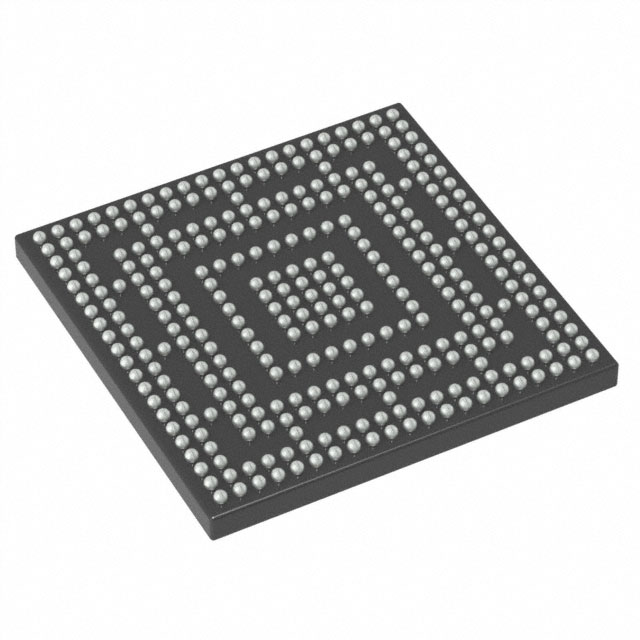

| Package / Case | 325-TFBGA | 325-TFBGA |
| Primary Attributes | - | Servo Controller |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 324-BGA (11x11), 325-BGA (11x11) | 324-BGA (11x11), 325-BGA (11x11) |
| Technology | Power MOSFET, CMOS | Power MOSFET, CMOS |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC8670 |
| Voltage - Load | 1.2 V, 3.3 V | 1.2 - 3.3 V |
| Voltage - Supply [Max] | 3.45 V | 3.45 V |
| Voltage - Supply [Min] | 3.15 V | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TMC8670 Series
EVAL KIT FOR TMC8670
| Part | Primary Attributes | Utilized IC / Part | Type | Function | Supplied Contents | Contents | Motor Type - AC, DC | Technology | Current - Output | Supplier Device Package | Applications | Mounting Type | Motor Type - Stepper | Interface | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Load | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC8670-2A24V-EV-KIT | Servo Controller | TMC8670 | Power Management | Motor Controller/Driver | Board(s) | Board(s) | |||||||||||||||
Analog Devices Inc./Maxim Integrated TMC8670-BI | Controller - Speed, Driver - Fully Integrated, Control and Power Stage | Brushless DC (BLDC), Brushless DC (BLDC) Servo, PMSM, Stepper | CMOS, Power MOSFET | 8 mA | 324-BGA (11x11), 325-BGA (11x11) | General Purpose, Industrial | Surface Mount | Multiphase | SPI, UART | High Side, Low Side, Pre-Driver - Half Bridge (3) | 3.45 V | 3.15 V | 1.2 V, 3.3 V | 325-TFBGA | 100 °C | -40 C | |||||
Analog Devices Inc./Maxim Integrated TMC8670-EVAL | Servo Controller | TMC8670 | Power Management | Motor Controller/Driver | Board(s) | Board(s) |
Description
General part information
TMC8670 Series
Multiphase Motor Driver Power MOSFET SPI, UART 324-BGA (11x11)
